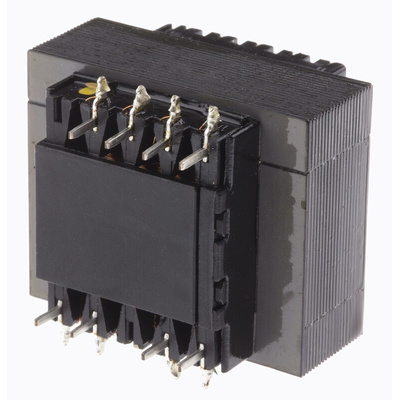

RS PRO 12V ac 2 Output Through Hole PCB Transformer, 3VA, Трансформатор

RS PRO 12 V AC 2 Output Through Hole PCB Transformer, 3 VA

Use this transformer from RS PRO to connect components to your printed circuit board (PCB), whether in series or parallel. It offers a wide range of current and output voltage possibilities. The unit's through-hole mounting design is supplied with pins, making it easy to pierce the board and ensure a secure connection every time.


The transformer weighs just 140 g, so it's suitable for use with portable equipment. It's also very compact, allowing you to connect components on a board even in small spaces.


This PCB transformer has been flash tested for protection against high-voltage surges. It's often used in multi-layered PCBs and is typically found in computers, industrial monitoring systems and medical equipment.

Features and Benefits

• Power rating of 3 VA


• Primary voltage rating of 115 V AC and 230 V AC


• Secondary voltage rating of 12 V AC


• Dimensions of 38 (length) x 35 (width) x 30 mm (depth)


• Operating frequency range of 50 to 60 Hz


• Two outputs


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for Electrostatic Control Standards

RS PRO Datasheet
