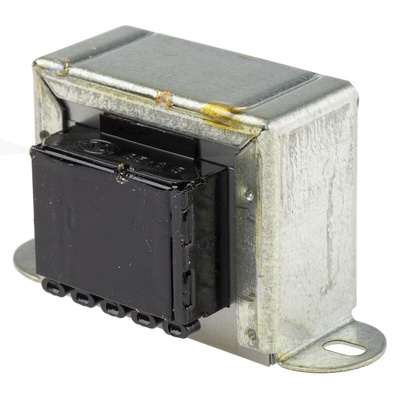

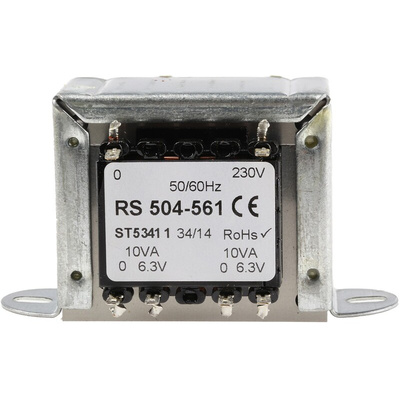

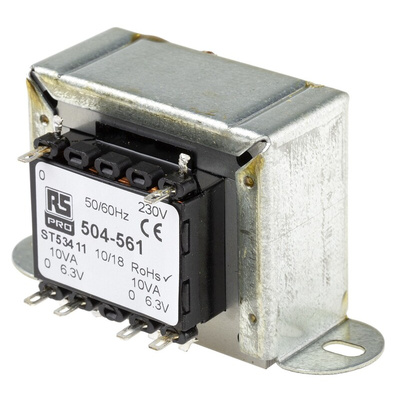

RS PRO 20VA 2 Output Chassis Mounting Transformer, 6.3V ac, Трансформатор

RS PRO 230Vac Chassis Mount Clamp and Frame Isolating Transformer (20 VA)

A chassis mounted clamp construction isolating transformer suitable for general applications with a full varnish impregnation rated to 230V 50/60Hz. The two independent secondary windings (2 x 6.3V) may be connected in series or parallel to give a wide range of output voltage and current options.
Designed with solder tags for simple termination and two 4.7mm x 8.7mm slots for quick and easy mounting. A reliable and consistent clamp mount transformer that is easy to install and suitable for a wide range of applications.

Features and Benefits

Chassis mounting Transformer
Isolating transformer
Clamp and frame construction
20Va Power rating
230V primary winding
2 x 6.3V secondary windings
Chassis mount
Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
100% electrical and flash tested

For a suitable Transformer Shroud see RS PRO 504-004

Standards and Approvals: UKCA, CE, IEC61558-2-6 / EN61558-2-6, RoHS Compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Standards

BS3535; EN 60 742

RS PRO Datasheet
