RS PRO 20VA 2 Output Chassis Mounting Transformer, 20V ac, Трансформатор

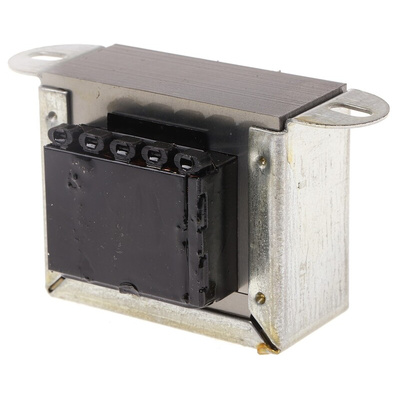

RS PRO 2 Output Chassis Mounting Transformer, 20 V AC

Need a versatile transformer to step voltages up or down? This double-output 20 V AC transformer from RS PRO is designed for chassis mounting to help you build stable and space-efficient assemblies. The double-section bobbin construction features two independent secondary windings, which you can connect either in series or in parallel to offer a wide variety of output voltage and current options.
The windings are fully varnish-impregnated to make them resistant to moisture and dust and protect against wear and tear. The bobbins are also shrouded for electrical insulation and safety. They have solder tag terminations, which ensure you make a secure connection. The two-hole fixing with wrap-over clamps enables you to quickly and securely install the transformer. You can use chassis-mounting transformers such as this one in applications including relays, pumps and speed chargers.

Features and Benefits

• Clamp mounting type


• Two outputs


• Power rating of 20 VA (volt-ampere)


• Primary voltage rating of 230 V AC


• Secondary voltage rating of 20 V AC


• Weight of 550 g


• Dimensions of 59 (L) x 57 (W) x 50 mm (D)


• Fixing hole diameter of 4.7 x 8.7 mm


• Operating frequency range of 50-60 Hz

Standards

BS3535; EN 60 742

RS PRO Datasheet
