RS PRO 50 VA 2 Output Chassis Mounting Transformer, 6 V AC

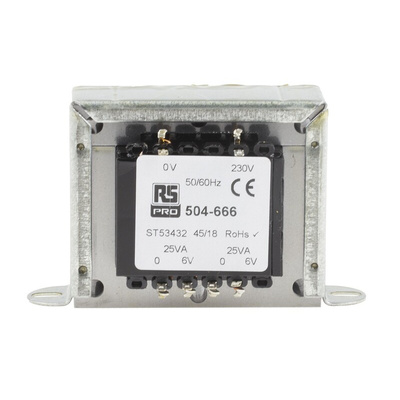

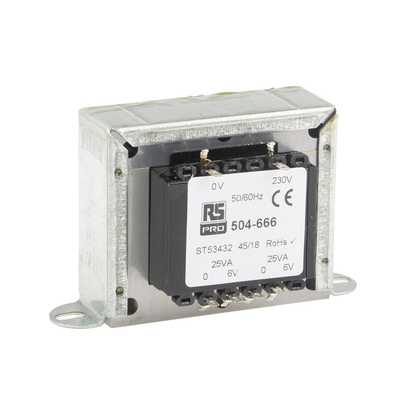

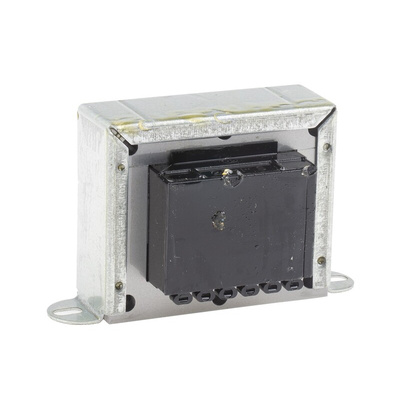

This RS PRO chassis-mounting transformer steps offers a reliable way to step voltages up or down. You can connect the two independent secondary windings in series or in parallel, so it gives you a broad range of output current and voltage options.


The transformer has a two-hole fixing that makes for easy installation with wrap-over clamps. The unit's fully shrouded bobbins give added protection from electrical interference, and the coils are fully varnish-impregnated for improved dielectric strength.


The unit's permanent label includes a detailed product specification for safe and easy installation. The transformer is fully electrical and flash-tested and complies with BS3535 and EN 60742 standards, meaning it's guarded against high voltages. Isolating transformers like this can be found in medical devices and test equipment.

Features and Benefits

• Dimensions of 79 (length) x 62 (width) x 65 mm (depth)


• Fixing hole diameter of 4.7 x 9.5 mm


• Operating frequency range of 50 to 60 Hz


• Primary voltage rating of 230 V AC


• Secondary voltage rating of 6 V AC


• Clamp mounting


• Double output


• Power rating of 50 VA


• Weight of 1 kg
