RS PRO 6VA 2 Output Chassis Mounting Transformer, 9V ac, Трансформатор

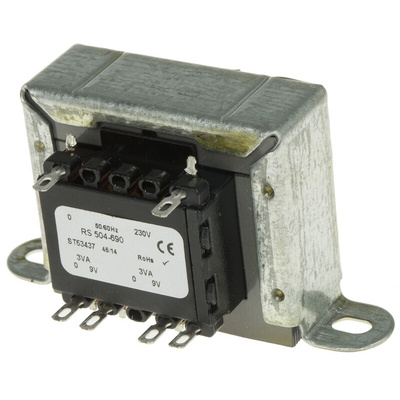

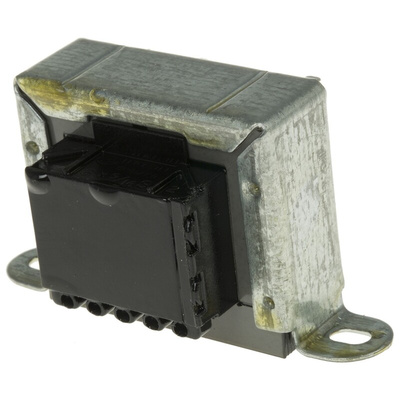

RS PRO 6 VA 2 Output Chassis-Mounting Transformer, 9 V AC

Looking for a compact solution to convert current and voltage in your electromagnetic and electrical controls and applications? You can connect this RS PRO 6 V output chassis-mounting transformer in parallel or series. It offers a wide range of output voltage and current options.
The lightweight transformer is suitable for smaller instruments as it doesn't add weight or take up much space. Pre-drilled base holes and solder tag terminations allow for quick and easy installations.
Its Restriction of Hazardous Substances (RoHS) compliance ensures the product contains only trace amounts of any harmful materials. It's also been tested for consistency and safety by engineers as it's part of our trusted RS PRO range. You can use this transformer for applications like relays, pumps and heating elements in your home or work settings.

Features and Benefits

• Depth of 37 mm


• Dimensions of 45 x 40 x 37 mm


• Fixing hole diameter of 4 x 5.5 mm


• Length of 45 mm


• Maximum operating frequency of 60 Hz


• Minimum operating frequency of 50 Hz


• Clamp mounting type


• Two outputs


• Power rating of 6 VA


• Primary voltage rating of 230 V AC


• Secondary voltage rating of 9 V AC


• Weight of 200 g


• Width of 40 mm

Standards

BS3535; EN 60 742

RS PRO Datasheet
