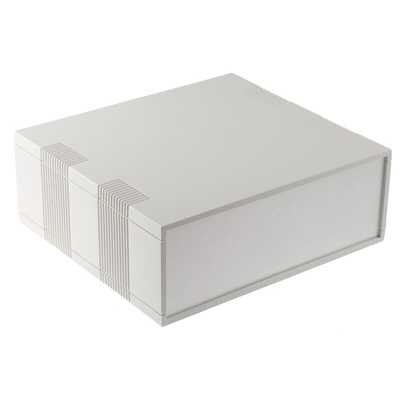

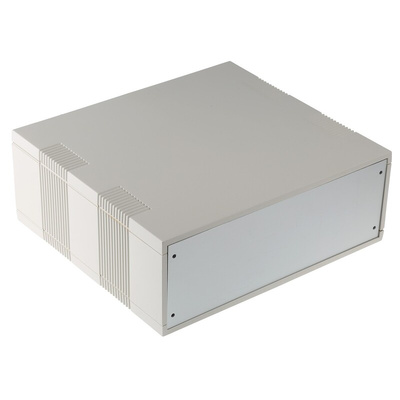

RS PRO Grey ABS Desktop Enclosure, 250 x 275 x 100mm, Корпус

RS PRO Desktop Enclosures, Grey ABS

This range of plastic enclosures from our trusted and reliable own brand RS PRO offers an excellent instrument case and enclosure that is ideal for housing electronic components including desktop based applications such as displays and computer hardware. These lightweight yet durable enclosures are manufactured with ABS plastic, providing a shock absorbent, flame, chemical and scratch resistant protective case that can be used in a variety of environments. These versatile enclosures also include internal PCB mounting guides for 6U Eurocards 160 mm or 220 mm deep, providing a secure and easy way to fit cards and boards. These desktop enclosures also feature non slip feet and 4 self adhesive mounting clips and can also be used with the RS PRO ABS handle 504-798, allowing the enclosure to be carried or tilted.

Features and benefits

• Manufactured with lightweight yet durable ABS plastic
• Includes non slip feet and 4 self adhesive mounting clips
• Excellent protective qualities including flame resistance, shock absorbance, chemical and scratch resistance
• Internal mounting guides for PCB
• Flame resistant (UL94-HB)
• Temperature range; -40°C to +80°C

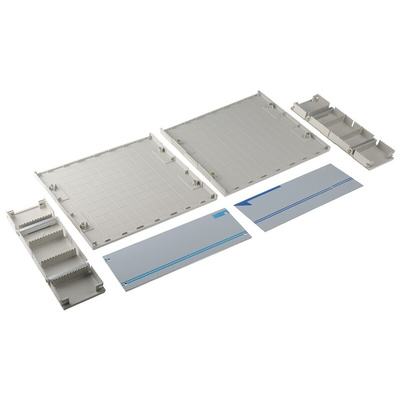

• 2 anodised aluminium panels supplied: 3 mm thick, screw fitted; 1.2 mm thick, retained by slots in top and bottom mouldings
• Can be used with RS PRO ABS handle 504-798 to either carry or tilt the enclosure

Application

ABS desktop enclosures are a versatile type of enclosure that can be used for a wide range of electronic applications due to their protective qualities and flexible layouts. ABS desktop enclosures are used in a wide range of applications such as

• Desktop computers
• Games consoles
• Displays
• Projectors
• Entertainment systems

Benefits of ABS plastic?

ABS (Acrylonitrile Butadiene Styrene) is a low cost type of thermoplastic polymer that is highly durable and features a high resistance to chemical corrosion in its solid state. It has a low melting point allowing it to be molded and shaped accordingly, making it a very versatile material. ABS plastic also features scratch resistance, high shock absorbance and high tensile strength.

Is this waterproof?

This enclosure is not waterproof and should not be used outdoors.

What is included?

x1 ABS enclosure with non slip feet
x4 self adhesive mounting clips
Optional ABS carry and tilt handle also available 504-798

Supplied with

non-slip feet and 4 self adhesive mounting clips (a grid pattern in top/bottom mouldings provides accurate positioning)

RS Pro Datasheet
