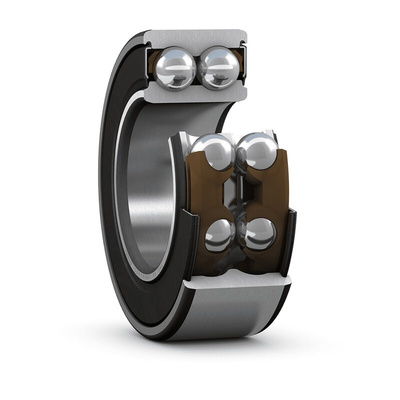

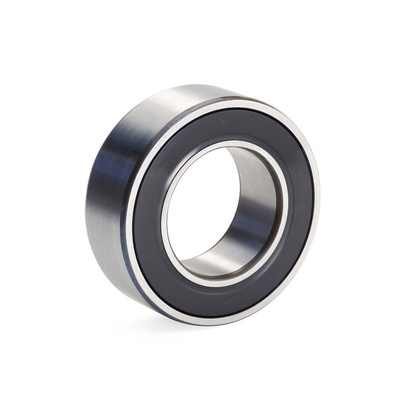

SKF 3201 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 12mm I.D, 32mm O.D, Шарикоподшипник

SKF Angular Contact Ball Bearing, Plain Race Type, 12 mm ID - 3201 A-2RS1TN9/MT33

These double-row angular contact ball bearings from SKF are ideal for applications where precision and high running accuracy are essential. They're well-suited to applications that experience high rotating speeds, as well as simultaneously acting radial and axial loads. These components are precision-manufactured for strength and robustness, and they offer very low levels of vibration. Advanced raceways mean minimal heat is generated, enabling quiet, cool running. These ball bearings are also pre-greased for maintenance-free lifetime usage.

• Parallel cage bore type
• Cage made from fibreglass reinforced nylon 66
• Dynamic load rating of 10.1 kN
• Inner diameter of 12 mm
• Outer diameter of 32 mm
• Plain race type
• Sealed end type
• Race width of 15.9 mm
• Static load rating of 5.6 kN

Application information

• Energy and utilities industry
• Chemical processing machinery
• Automotive industry

What are the main advantages of double-row angular contact ball bearings?

Double-row angular contact ball bearings can accept axial and radial loads in either direction. They're also a way to save space if you find two single-row ball bearings, positioned in a back-to-back arrangement, take up too much axial room.

3201A-2RS1TN9/MT33

SKF Bearing Designations
