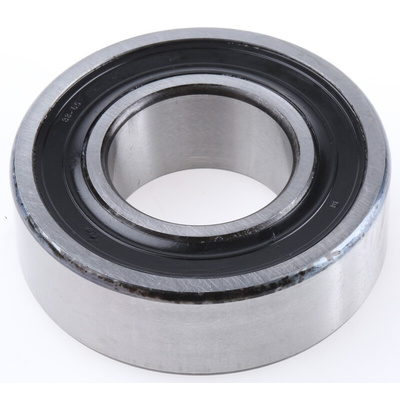

SKF 2206E-2RS1TN9 Self Aligning Ball Bearing- Both Sides Sealed 30mm I.D, 62mm O.D, Шарикоподшипник

Double Row Self - Aligning

Radial Self-Aligning Ball Bearing

These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1).

Open Bearings

ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores.

Sealed bearings

2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances.

TN suffix denotes polyamide cage

Supplied with

instruction leaflet.

SKF Plain Self Aligning Ball Bearing, 30 mm ID, 62 mm OD - 2206E-2RS1TN9

This innovative self-aligning ball bearing from SKF is designed to avoid shaft deflection and misalignment. With low friction generation, it's particularly suited to high-speed applications with low axial loads. The sealed bearing comes pre-greased for maintenance-free lifetime usage. High-grade balls and advanced raceways ensure smooth, low-noise operation even at high speeds. This product is strictly tested for adherence to quality and compliance with British and EU electrostatic discharge standards.

• Fibreglass-reinforced PA (nylon) cage for strength
• 30 mm inside diameter, 62 mm outside diameter
• Operating temperature range of -40°C to +100°C
• Static load rating of 4.65 kN
• Dynamic load rating of 15.6 kN
• Adheres to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards

Application Information

• Pumps, industrial fans and centrifugal separators
• Agricultural and food processing equipment such as cereal mills and fruit shredders
• Fabric industry equipment such as ring spinning or twisting machines

When should I use sealed self-aligning ball bearings?

Since sealed self-aligning ball bearings offer maintenance-free lifetime usage, they're the preferred choice for high-speed original equipment manufacturing. They significantly reduce noise and vibrations and can be useful for industrial fans and blowers.

What type of seal is used in SKF self-aligning ball bearings?

SKF uses high-quality sheet steel reinforced with NBR (nitrile butadiene rubber), which is oil and water-resistant.
