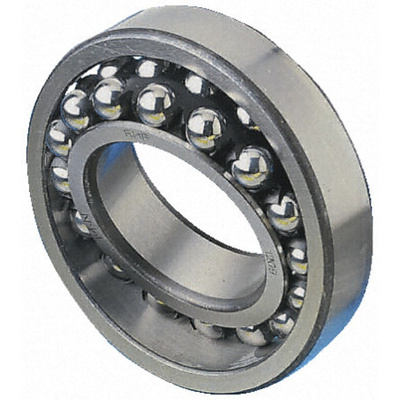

Double Row Self - Aligning
Radial Self-Aligning Ball Bearing
These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1).
Open Bearings
ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores.
Sealed bearings
2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances.
TN suffix denotes polyamide cage
Supplied with
instruction leaflet.

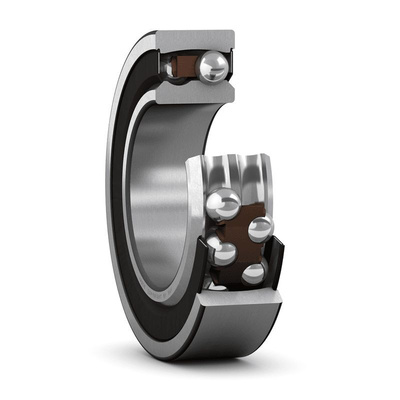

SKF Plain Self-aligning Ball Bearing, 20 mm ID - 2204E-2RS1TN9
This double-row ball bearing from SKF is designed to withstand both radial and axial loads. It's self-aligning, so it copes well with any initial misalignment. With an oil-resistant, non-wearing synthetic rubber seal on both ends, it keeps out water, dirt, dust and other particles that could result in increased friction or damage to the bearing. It's also sealed with grease containing a lithium thickener that's safe for use at temperatures between -40°C and +100°C, making it useful in a wide range of industrial environments. Stainless steel gives the bearing a durable, rust-resistant finish.
• Sealed end
• Two rows
• Parallel bore
• Inner diameter of 20 mm
• Outer diameter of 47 mm
• Race width of 18 mm
• Static load rating of 3,400 N
• Stainless steel ball
• Fibreglass reinforced PA (polyamide) cage
Application Information
• Automotive industries
• Power generation
• Manufacturing
• Distribution
When should these bearings be used?
Self-aligning ball bearings offer a long service life and maintenance-free usage. This makes them particularly suitable for demanding, high-speed applications and larger operations where adjustments can be time-consuming or inefficient.
Техническая спецификация
2204E-2RS1TN9SKF Bearing DesignationsDatasheet - 2204E-2RS1TN9Catalogue - 2204E-2RS1TN9| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
