SKF 2205E-2RS1TN9 Self Aligning Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D, Шарикоподшипник

Double Row Self - Aligning

Radial Self-Aligning Ball Bearing

These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1).

Open Bearings

ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores.

Sealed bearings

2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances.

TN suffix denotes polyamide cage

Supplied with

instruction leaflet.

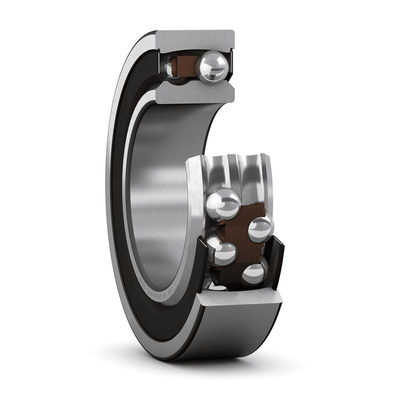

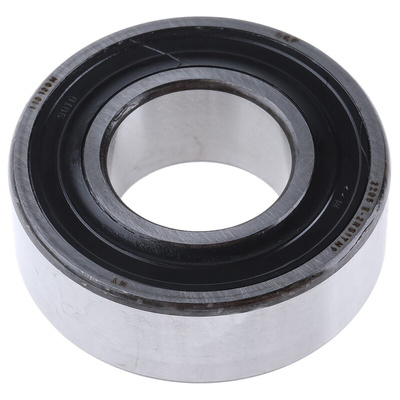

SKF Plain Self Aligning Ball Bearing, 25 mm ID, 52 mm OD - 2205E-2RS1TN9

To efficiently handle shaft deflections or misalignment, choose this innovative self-aligning ball bearing from SKF. Featuring two rows, it's a perfect solution for high-speed applications where you need to support low axial loads in both directions. The sealed bearing prevents dust from getting in and comes pre-greased for effortless maintenance. High-grade balls and advanced raceways are on hand to give you smooth, quiet operation and reliably long service. This product has been tested for quality and adherence to British and EU electrostatic discharge standards.

• Fibreglass-reinforced PA (nylon) cage for strength
• 25 mm inside diameter, 52 mm outside diameter
• Plain race with 20 mm width
• Operating temperature range of -40°C to +100°C
• Static load rating of 4 kN
• Dynamic load rating of 14.3 kN
• Adheres to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards

Application Information

• Agricultural and food processing industry equipment such as cereal mills and shredders for fruit farms
• Fabric industry equipment such as ring spinning machines and twisting machines
• Pumps, industrial fans and centrifugal separators

When should I use double-row ball bearings?

Use these bearings where two single-row ball bearings in a back-to-back 'O' arrangement sustain axial loads in both directions. They're especially convenient when axial space is limited.

Datasheet

SKF Bearing Designations

Datasheet - 2205E-2RS1TN9

Catalogue - 2205E-2RS1TN9
