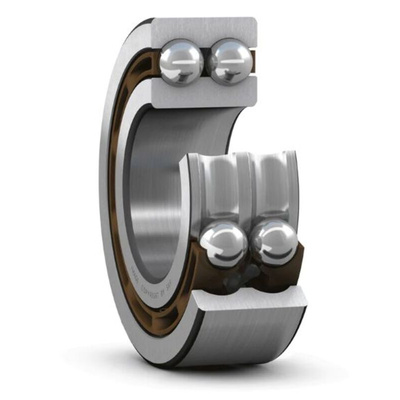

SKF 4206 ATN9 Double Row Deep Groove Ball Bearing- Open Type 30mm I.D, 62mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Double Row, 30mm ID, 62mm OD - 4206 ATN9

Count on this ball bearing from SKF to keep your machines moving in both directions. Thanks to its deep-groove design and double rows, it makes light work of shifting heavy radial and axial loads up to 26kN. You'll find it's a safe bet for applications needing high rotational speeds up to 9,500r/min due to its friction-reducing properties. These combine with a hardwearing carbon-rich steel construction to make this product a long-lasting choice for harsh industrial environments. As the bearing also runs smoothly without lubricant, it's low maintenance to boot.

Features & Benefits

• Fatigue load limit of 0.88kN so tolerates heavy loads before there's a chance of metal failure
• Fibreglass-reinforced PA cage is mechanically and thermally robust
• Internal clearance rating CN ensures rolling parts can move freely between races
• Withstands speeds of up to 17,000r/min before any risk of thermal metal degradation

Applications

• Industrial fans
• Material handling systems
• Automotive manufacture

What temperatures can I use this bearing in?

SKF's deep-groove bearings are all heat-stabilised up to at least +120°C, so you can trust this one's a reliable fit for use in harsh settings.

Open - SKF

Double-row deep groove ball bearings are very suitable for bearing arrangements where the load carrying capacity of a single-row bearing is inadequate. They have deep uninterrupted raceways and high conformity between the balls and raceways, and as such, they are able to carry axial loads acting in both directions in addition to radial loads.

Fitted with two injection moulded snap-type cages of glass fibre reinforced polyamide 6,6
Operating temperature: up to +120°C

4206 ATN9

SKF Bearing Designations

Datasheet - 4206 ATN9

Catalogue - SKF Coatings
