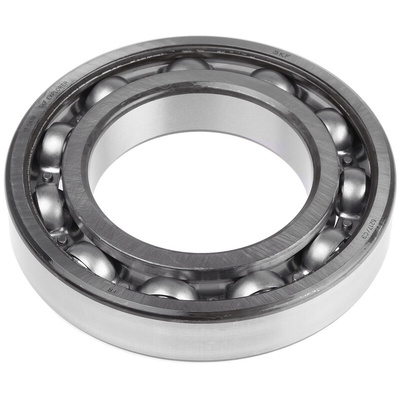

SKF 6217/C3 Single Row Deep Groove Ball Bearing- Open Type 85mm I.D, 150mm O.D, Шарикоподшипник

SKF Ball Bearing, Plain Race, Deep-Groove Bearing Type, 85mm ID, 150mm OD - 6217/C3

Looking to move heavy radial or axial loads? Get things rolling with this ball bearing from SKF. As a deep-groove type, it's optimised for low levels of noise, vibration and friction. This helps to eliminate overheating issues, so you can count on a long-lasting bearing assembly that doesn't need regular servicing or relubricating. The unit comes with greater than normal internal clearance, so it moves freely between its two races and you can trust it's a safe bet when you want rotations at high speeds of up to 5,600r/min. Thanks to an impressive dynamic load rating of 87.1kN, it tolerates large forces while in motion.

Features & Benefits

• Part of the SKF Explorer class, so safe and long-lasting in high power-density applications
• Reference speed of 9,000r/min gives you a safe upper limit to help avoid thermal degradation
• Made of carbon-rich bearing steel for wear resistance in demanding industrial tasks

Applications

• Pumps
• Dental tools
• Electric motors
• Optical encoders

What temperatures can I use this product in?

The bearing withstands temperatures up to +120°C, so you can rest assured it's safe for use in harsh environments.

Datasheet

SKF Bearing Designations

Datasheet - 6217/C3

0505962_Catalogue
