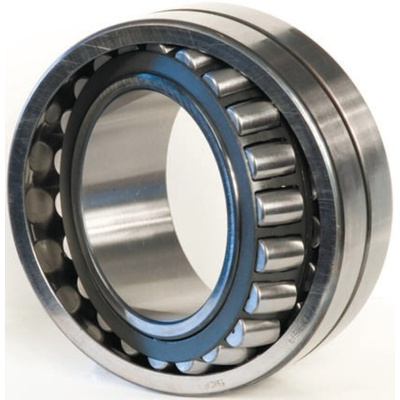

SKF 22211E 55mm I.D Spherical Roller Bearing, 100mm O.D, Роликовый подшипник

SKF Spherical Roller Bearing, 55mm ID, 100mm OD - 22211E

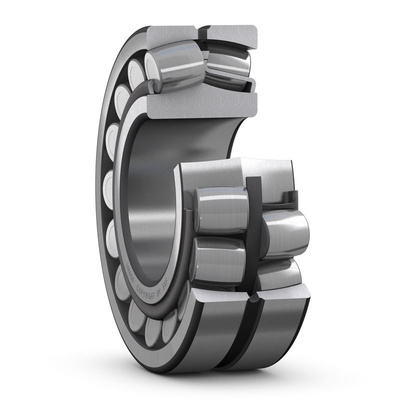

This innovative spherical roller bearing from SKF is a versatile component that can handle heavy radial and axial loads in rotating equipment. Its two rows of high-quality cylindrical rollers run smoothly along the lubricated raceway for low-noise operation. The bearing is self-aligning, which means it can accommodate shaft displacement without friction for efficient operation. A dynamic load rating of 125kN and a static load rating of 127kN means it supports heavy loads in both moving and stationary installations. Thanks to its light weight of just 0.84kg, it's easy to handle and won't add unnecessary strain on your equipment.

• Limiting speed of 8500rpm (rotations per minute) for use in high-speed applications
• Steel cage material for durability and resistance to corrosion

Applications

• Quarrying and mining equipment
• Air conditioning compressors
• Mechanical pumps
• Steering systems

How do I relubricate this spherical roller bearing?

This unit features grooves along the rollers that let you lubricate the bearing as needed. Thanks to its open-ended design, there's no need to dismantle the unit first, saving you time and effort during maintenance.

22211E

Datasheet - 22211E

Catalogue - Spherical Roller Bearings
