SKF 22216EK 80mm I.D Spherical Roller Bearing, 140mm O.D, Роликовый подшипник

SKF Spherical Roller Bearings

SKF Spherical Roller Bearings offer an attractive combination of design features, which make them irreplaceable in many demanding applications.

Self-aligning - allows misalignment between shaft and housing without increase of friction and without reduction of bearing life
Very high Load Carrying Capacity - Optimum layout inside available cross-section provides maximum radial and axial load carrying capacity
Robust - Insensitive to misalignment caused by shaft or housing deflection due to heavy load
Easily fitted for loads in all directions - The bearings are non-separable and ready to install using a number of mounting methods
Easy bearing application - The favourable design characteristics and mounting enable for a more efficient and compact machine design

Spherical Roller Bearings with integral seals BS2 Series offer additional benefits:

Protection against contamination - SKF sealed spherical roller bearings are especially suited for bearing positions where, because of limited space or for cost reasons, effective external seals cannot be provided
Grease Retention - Contact seals on both sides of the bearing retain the factory filled grease where it is required: inside the bearing
Minimum maintenance requirements - Under normal operating conditions, sealed spherical roller bearings are maintenance free, keeping costs and grease consumption low

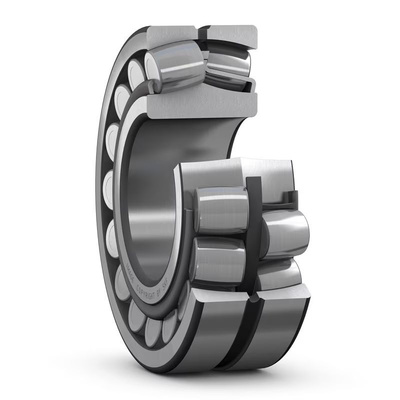

SKF Roller Bearing, Steel Cage, 80mm Inside Diametre - 22216EK

This SKF roller bearing, with a spherical design and varying dimensions, is an essential component for numerous automation, electronics, electrical, and mechanical applications. Its unique structure allows for optimal performance in a wide range of settings, making it a versatile and reliable choice for professionals in various industries.

Features & Benefits

• Roller bearing with a tapered bore for enhanced efficiency
• Steel cage construction for durability and reliability in challenging environments
• Dynamic load rating of 236 kN ensures high performance under pressure
• Fatigue limit load of 29 kN for long lasting use without compromising quality
• Open end design for easy maintenance and accessibility

Applications

• Ideal for use in automation systems due to its high load-bearing capacity
• Perfect for electronic devices requiring precise movement and positioning
• Essential in electrical machinery for smooth operation and longevity
• Suitable for various mechanical applications where reliability is crucial

Can it handle heavy loads effectively?

Yes, the SKF roller bearing is designed to withstand dynamic loads of up to 236 kN, ensuring reliable performance even under challenging conditions.

Will it require frequent maintenance?

No, thanks to its open end design, the roller bearing is easily accessible for maintenance, reducing downtime and increasing efficiency.

Is it suitable for automation systems?

Yes, the spherical roller bearing is perfect for automation applications, offering high load capacity and exceptional performance.

Does it provide long-lasting durability?

Yes, with a fatigue limit load of 29 kN, this roller bearing ensures longevity and reliability in various industrial settings.

Can it be used in electronics applications?

Yes, the SKF roller bearing is a versatile component that can be integrated into electronic devices that require precise movement and stability.

22216EK
