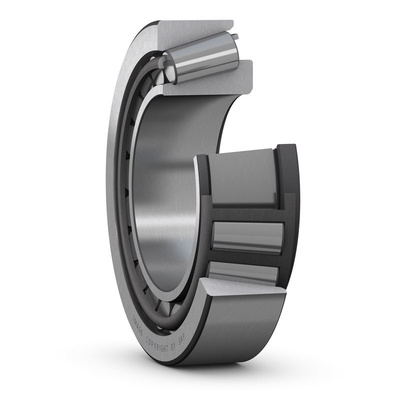

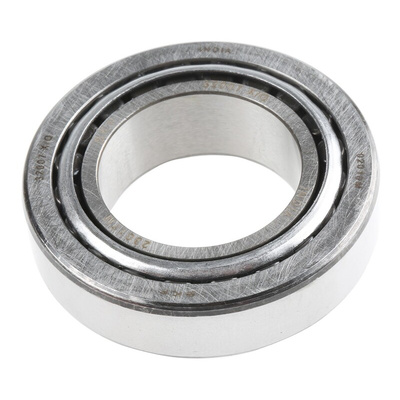

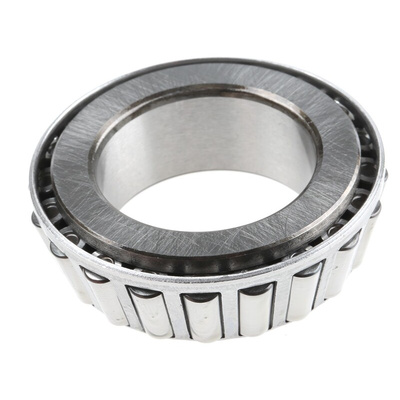

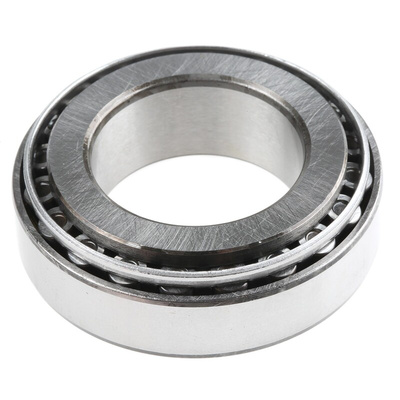

SKF 32007 X 35mm I.D Taper Roller Bearing, 62mm O.D, Роликовый подшипник

Metric

Single-row taper roller bearings can only take axial loads in one direction. The forces generated in the bearing by radial loads, and the force acting axially, must be offset by an external counter force. This is why in practice single-row taper bearings are mounted against a second taper roller bearing.

Dimensions comply with data in DIN ISO 355 and DIN 720, 1979

SKF Roller Bearing, Cylindrical Bore Type, Single Row, 35mm ID, 62mm OD - 32007 X

Looking for a reliable way to support rotating machine parts? Choose this roller bearing from SKF. Its 18mm-wide raceway holds a row of cylindrical rollers that move between the two rings to allow for smooth rotation around a shaft or axle. The unit is designed for mounting against another one just like it to accommodate combined thrust and axial loads. As you can mount its outer ring separately from its other elements, it's easy to assemble or disassemble, making installation quick and maintenance straightforward.

Features & Benefits

• High limiting speed of 11,000rpm, for use in heavy-duty applications
• Sheet-metal cage provides reliable stability and tolerance to shaft misalignment
• Open-end type for quick and easy lubrication without dis-assembly

Applications

• Aviation cargo systems
• Power generation
• Automotive industry
• Aerospace technology

What's the diameter of this roller bearing?

The inside diameter of this unit is 35mm, while the outside diameter is 62mm, so it's suitable for smaller shafts.

What load ratings does this unit have?

This roller bearing can withstand 54kN of static load and 49kN of dynamic load, so you can be sure of its strength when moving and stationary.

32007 X/Q

Datasheet - 32007 X
