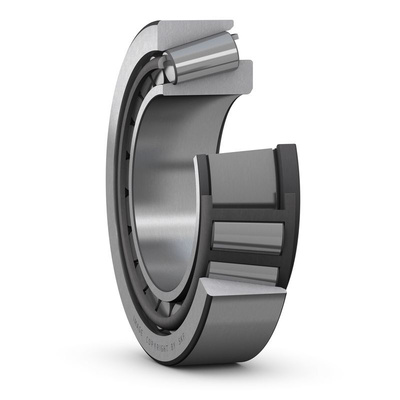

SKF 32206 30mm I.D Taper Roller Bearing, 62mm O.D, Роликовый подшипник

Metric

Single-row taper roller bearings can only take axial loads in one direction. The forces generated in the bearing by radial loads, and the force acting axially, must be offset by an external counter force. This is why in practice single-row taper bearings are mounted against a second taper roller bearing.

Dimensions comply with data in DIN ISO 355 and DIN 720, 1979

SKF Roller Bearing, Cylindrical Bore Type, Open Ends, 30mm ID, 62mm OD - 32206

Do you need a bearing that's capable of handling combined axial and radial loads? This tapered SKF roller bearing has the versatility you're looking for. Between its two metal rings, there's a 17mm-wide raceway that houses a row of cylindrical rollers. These achieve high surface contact to carry heavy dynamic loads up to 58.5kN. A sheet-metal cage provides stability and tolerance to shaft misalignment. By mounting the outer ring separately from the other parts, you can assemble or disassemble this component easily, for quick installation and efficient maintenance.

Features & Benefits

• Tapered angle for supporting large axial and radial loads in one direction
• Basic static load rating of 57kN indicates it's strong and durable
• Open-end type to allow for easy lubrication
• High maximum operating temperature of +120°C for use in demanding environments

Applications

• Paper mills
• Cement plants
• Oil industry
• Propeller systems
• Mining equipment

What size is this unit?

To suit smaller systems, this roller bearing has an inside diameter of 30mm, an outside diameter of 62mm and a total width of 21.25 mm.

What's the limiting speed of this unit?

This component has a high limiting speed of 11,000rpm, indicating that it's suitable for use in fast-paced applications.
