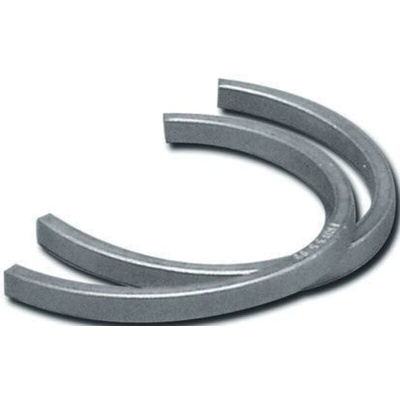

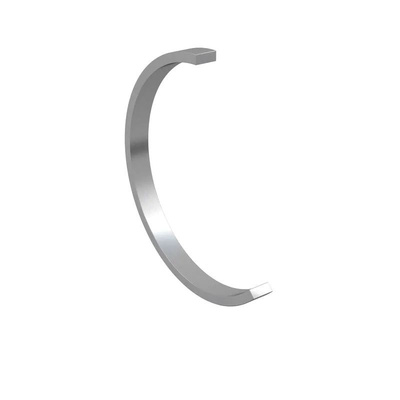

SKF FRB 10/120 Locating Ring -, 60mm ID

SKF Locating Ring, 80mm Centre Height, 120mm OD - FRB 10/120

Use this locating ring from SKF to correctly install a bearing into its housing. It helps to securely attach the bearing to the axial shaft inside the housing and is an essential part when the bearing width and seat measurements aren't accurately matched. Installing it ensures your bearings remain attached and won't come loose or generate noise in vibrating equipment. To correctly install the device in a plummer or pillow housing, you need two rings, with one ring on each side of the bearing. In instances when only one ring is needed, you can fix it on the same side as the locknut.

Features & Benefits

• Compact width of 10mm fits into applications with space limitations
• Low weight of 89g means it puts minimal strain on your equipment
• Inner diameter of 110mm and outer diameter of 120mm makes it suitable for medium-sized shafts

Applications

• Medical equipment
• Machine tooling
• Automotive engineering

What's this locating ring made of?

This locating ring is made of cast iron to withstand corrosion and impact, so you can rely on it for long-term performance in harsh conditions.
