21202003, Rose Mini-Polyglas Series Polyester Wall Box, IP65, 200 mm x 200 mm x 170mm, Настенный шкаф

Polyester Mini Control IP66 Wall Box Enclosure.

Rose mini polyester wall box enclosures are excellent for use both indoors and outdoors and have a large number of uses and locking systems. The enclosures and made from glass fibre reinforced thermoset polyester with an IP 66 ingress protection and fully insulated plus halogen free. You can choose from various available models with or without a built-in transparent window. Door locks are not included but the wall box enclosures do include not only the base and door, but also press-in inserts situated within the base which help you to mount internally and externally.

Features and Benefits.

•Mini Control wall box enclosure.
•Made from glass fibre reinforced thermoset polyester.
•With or without a transparent window.
•IP 66.
•Disruptive strength to IEC 60243-1.
•Fully insulated VDE 0100.
•Self-extinguishing UL 94 V-0.
•Halogen free.
•Surface resistance IEC 60093.
•Colour is grey (RAL 7038).
•Temperature range without window -40°C to +100°C.
•Temperature range with window -40°C to +80°C.

Models Available.

•Stock number 507602, type Polyg 1, with transparent window, 300 x 400 x 200 mm (E66473 certificate).
•Stock number 584356, type Polyg 2, with transparent window, 400 x 600 x 250 mm (E66473 certificate).
•Stock number 507618, type MIP 5, with transparent window.

Suitable Accessories.

•Stock number 507589, mounting plate (Polg1).
•Stock number 584378, mounting plate (Polyg 2).
•Stock number 507595, mounting plate (MIP 5).
•Stock number 2549226, external mounting bracket, 4 pieces (MIP 5).
•Stock number 2549232, socket wrench with 8 mm square drive.
•Stock number 2549210, locking screws, 2 pieces, Phillips screw (MIP 5).

Typical Applications.

•Distribution panels.
•Extensions of electronics for measuring including weather stations.
•Operating, control and monitoring system extensions.

(IP) Ingress Protection and what it means.

The first number is the protection from solids
The second number is the protection from liquids.
IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

•Yes, IP66 provides total dust protection and is also waterproof from high pressure water.

What is Supplied?

•Base and door.
•Built-in transparent window.
•Press-in inserts within the base.
•Inserts assist with mounting internally and externally.

Standards

IP66 EN 60529, UL 94 V-O, VDE 0100, IEC 60243-1, IEC 60093.

Certificate No.

E66473.

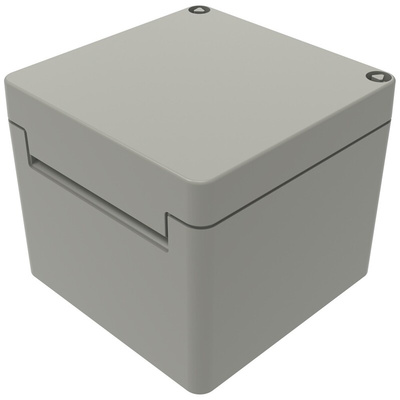

ROSE Wall Box, 200mm Height, 200mm Width - Mini-Polyglas Series - 21202003

Keep sensitive electrical equipment protected with this miniature wall box from ROSE. Thanks to its glass fibre-reinforced polyester construction, it's resistant to heat, corrosion and wear for durability in harsh environments. The box comes with a non-transparent lid so you can securely close it for protection against tampering. For added safety, it's halogen-free, so it won't emit toxic fumes in the event of a fire. This enclosure is fully insulated to minimise the risk of electric shock. It's commonly used in industrial distribution panels and monitoring systems.

Features & Benefits

• IP65 rating indicates it's dust-tight and protected against low-pressure water jets
• Meets UL94 V-0 flammability standards, meaning burning stops within 10 seconds for safety in the event of a fire
• Press-in inserts help to make mounting easy
• Conforms to UL 508A safety standards for industrial control panels

Applications

• Laboratory equipment
• Machining and tooling
• Automotive manufacturing
• Power generation

What's the operating temperature range of this wall box?

This enclosure has a broad operating temperature range between -40°C and +100°C, so it's suitable for use in demanding settings.

21202003 Technical Drawing
