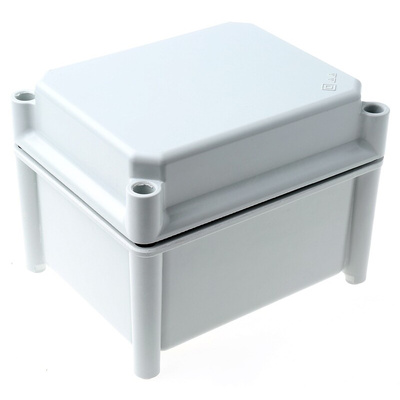

RS PRO Grey Polyester Enclosure, IP67, Grey Lid, 150 x 185 x 130mm, Корпус

Reinforced Glass Fibre Front Box Enclosures

Enclosure/boxes are made from grey hot moulded glass fibre reinforced polyester which is dyed in mass. The bases are complete with M4 threaded inserts (Dodge) for fixing a mounting plate or mounting frame. The covers are made from opaque glass fibre reinforced polyester. The enclosure/box provide you with security for both operators and equipment with insulation and protection to I 67 (IED 60529 and EN 60529). Protection IK 10 against external mechanical impacts (EN 62262 and IEC 62262). Designed for demanding environments the enclosures are corrosion resistant and maintenance free plus are RoHS compliant

Features and Benefits:

Two-part, modular, glass fibre enclosures
Removable chassis plates included
Self extinguishing, resistant to ozone, most oils, acids, bases and salts
Temperature range -50°C to +150°C

Additional Features:

Ingress protection (EN 60529) IP67
Impact resistant (EN 62262) IK 10
Short-term temperature range -50°C to 150°C with cover
Continuous temperature range -40°C to 70°C with cover
Insulated – rated insulation voltage Ui=1000 V
Colour light grey RAL 7035
PUR gasket
Glow wire testing (IEC 695-2-1) Self-extinguishing (PC) 960°C
Halogen free
UV resistant UL 508 720 hours in “Wealtherometer”
Good chemical resistance

Standards

IP67, IK10

RS PRO Grey IP67 Polyester Enclosure, 150 x 185 x 130 mm

This RS PRO enclosure/box provides you with security for both operators and equipment with insulation and protection to IP67 (EN 60529). Protection IK 10 against external mechanical impacts (EN 62262). Designed for demanding environments the enclosures are corrosion resistant and maintenance free plus are RoHS compliant. These enclosures are ideal for applications such as industry, oil refineries and steel works.

Features and Benefits:

• Two-part, modular, polyester enclosure


• Ingress protection (EN 60529) IP67 – waterproof so can be used outdoors


• Impact resistant (EN 62262) IK 10 – protected against 20 joules impact


• Short-term temperature range -50°C to 160°C with cover


• Continuous temperature range -40°C to 80°C with cover


• Electrical Insulated


• Colour grey RAL 7036 (Base and Cover)


• PUR gasket


• Glow wire testing (IEC 695-2-1) 960°C


• Halogen free


• UV resistant UL 508


• Good chemical resistance


• Flammability Rating UL 746C 5V

Typical Applications:

General purpose enclosures are a type of protective casing ideal for housing electrical parts and components. They are manufactured from a range of materials including aluminium and plastic and are available in a variety of sizes depending on the application required. These general-purpose enclosures are commonly used in applications including:

• Remote control systems


• Radio instrumentation


• Keypads


• Display boards


• Entry system controls

FAQs

What is included?
This enclosure from RS PRO is supplied with:

• Base with black screws for mounting plate/DIN-rail


• cover with PUR gasket


• polyamide cover screws

What is an IP rating?
IP (Ingress Protection) levels refer to the level of protection materials such as an electrical enclosure has against solids such as dust, debris and liquids. The first digit identifies the level of protection from a physical intrusion whereas the second digit identifies the level of protection from water and other liquids. A lower IP rating (such as IP54 offers protection from limited dust ingress where as a high IP rating such as IP78 can offer complete dust proof protection plus a continuous level of protection underwater.
This enclosure offers an IP67 rating meaning it is able to protect against immersion up to 1 m.

If I modify the enclosure will the IP rating remain the same?
Any modifications made to the enclosure will subsequently reduce the IP protective level.

Can this enclosure be used outdoors?
Yes, this enclosure can be used outdoors.

Standards

IP67, IK10

Supplied with
type":"Supplied with",

Base with screws for mounting plate/DIN-rail, cover with PUR gasket and polyamide cover screws.
