Z80-280, HARWIN Insertion & Extraction Tool, Datamate Series, Socket Contact

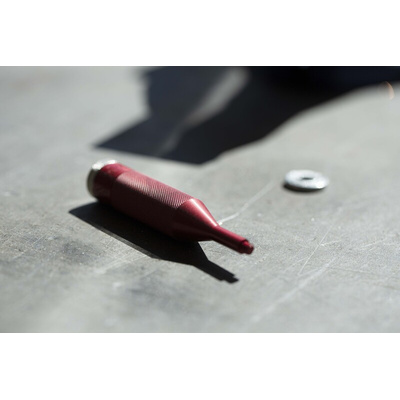

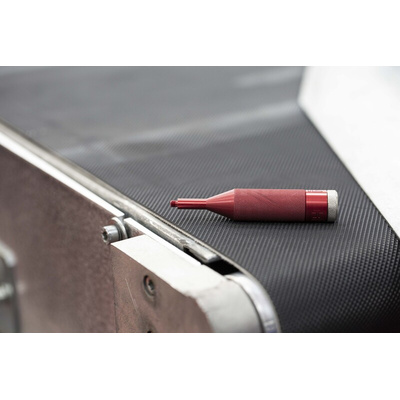

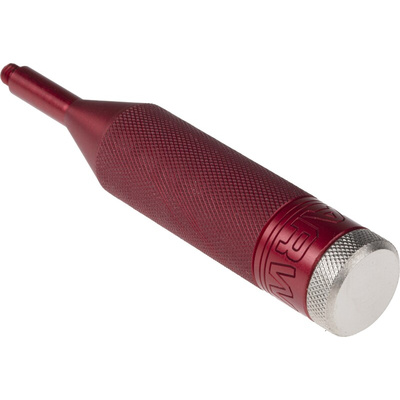

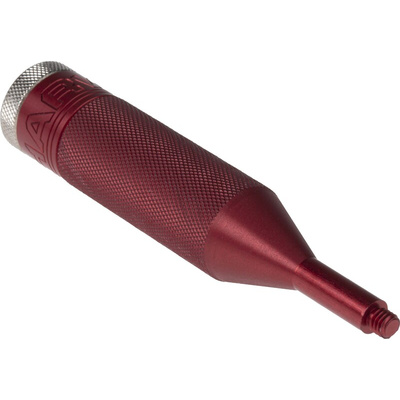

Harwin Datamate Insertion and Removal Tool

Insertion and removal tool for inserting or extracting crimp contacts into or out of Datamate 2.00mm pitch crimp housings. This Datamate insertion and extraction tool is for use with all male and female signal contacts in the Datamate L-Tek, J-Tek and Mix-Tek range of connectors.

2.0mm Datamate Series

The Datamate range is ideal for applications where safety is key, the application is subject to high loads of vibration, shock and acceleration or operates in harsh environments. These Datamate connectors are highly durable and can withstand high numbers of mating cycles without any degradation in performance. This performance is made possible by Harwin’s use of High Reliability four finger Beryllium Copper contacts in the Datamate range. These contacts feature a 4 finger clip to ensure integrity of connection under the most severe conditions.

Polarised mouldings
High reliability connector system
The L-Tek Datamate connectors are available with or without Latches.
Mates with known industry equivalents
Suited for COTS applications
Complies with BS9525-F0033/MIL C 55302/CEC 75101-008
