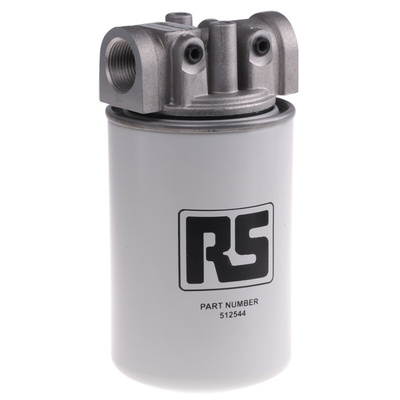

RS PRO 12 bar 3/4in Hydraulic Spin-On Filter Can, 65L/min max, 10μm filtration size

RS PRO Hydraulic Spin-On Filter Can, 10 μm, 3/4 in, 65 L/min Maximum Flow Rate

Safeguard a pump, valve, or circuit against contamination with this spin-on filter can from RS PRO. It keeps your hydraulic system clean and prevents wear when mounted inline using the threaded mounting holes on the top of the head.


A three-function valve is included with the filter. Once the opening pressure is attained, a forward bypass valve lets unfiltered oil bypass the contaminated part. A reverse flow valve enables reverse flow through the filter head without having to back-flush the element. During element changes, a non-return valve stops the supply line from draining.


For strength and long-lasting performance, the filter head is made of spheroidal graphite cast iron, and the filter bowl is made of cold-drawn steel. This makes it suitable for use in a variety of industrial settings. This type of low-pressure filter can is commonly used in agricultural and mining equipment.

Features and Benefits

• BSP (British Standard Pipe) 3/4 (Filter), G 3/4 (Element) connection thread


• Filtration size of 10 μm


• Maximum flow rate of 65 L/min


• Maximum operating pressure of 12 bar


• Operating temperature of -32ºC to +100ºC


• Nitrile rubber seal


• Thread size of 3/4 in

RS Pro Datasheet
