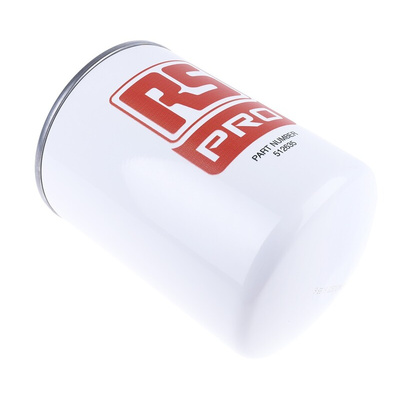

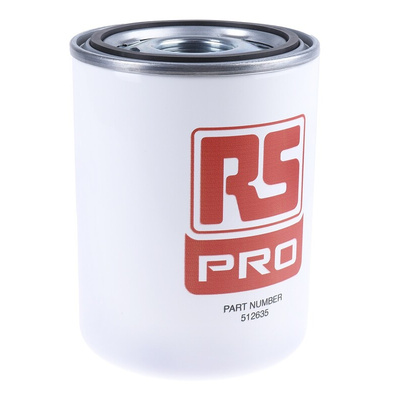

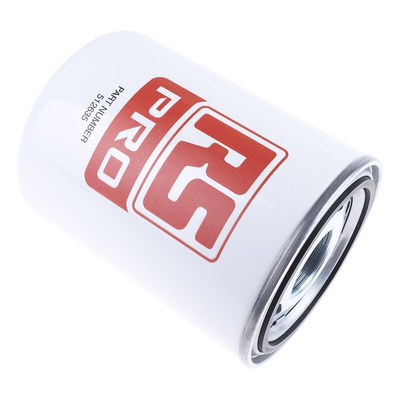

RS PRO 12 bar 1-1/4in Hydraulic Spin-On Filter Can, 95L/min max, 10μm filtration size

RS PRO Hydraulic Spin-On Filter Can, 10 μm, 3/4 in, 95 L/min Maximum Flow Rate

Do you need to protect a pump, valve, or circuit in a hydraulic system against contamination? Use this RS PRO spin-on filter can. You can install it inline using the threaded mounting holes on the top of the head to prevent wear and keep the system clean.


For high efficiency, the filter comes with a three-function valve. The first valve is a forward bypass valve, which allows unfiltered oil to bypass the contaminated area once the opening pressure is reached. Reverse flow through the filter head is enabled via a reverse flow valve, which eliminates the need to back-flush the element. Finally, a non-return valve keeps the supply line from draining during element changes.


For long-lasting use in harsh industrial environments, the filter head is made of spheroidal graphite cast iron, and the filter bowl is made of durable cold-drawn steel. Low-pressure filter cans like this one are typically found in mining equipment and agricultural applications.

Features and Benefits

• G 1-1/4 connection thread


• Filtration size of 10 μm


• Maximum flow rate of 95 L/min


• Maximum operating pressure of 12 bar


• Operating temperature of -32ºC to +100ºC


• Nitrile rubber seal


• Thread size of 1-1/4 in


• G thread standard
