RS PRO 12 bar 3/4in Hydraulic Spin-On Filter Can, 65L/min max, 10μm filtration size

RS PRO Hydraulic Spin-On Filter Can, 10 μm, 3/4 in, 65 L/min Maximum Flow Rate

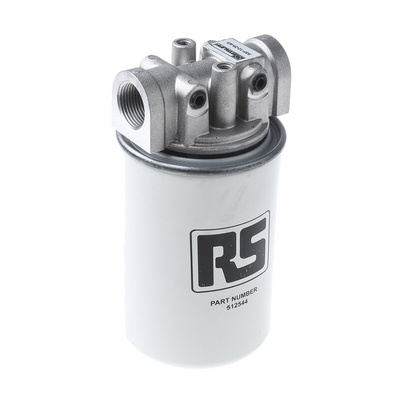

Do you need to safeguard a hydraulic system's pump, valve, or circuit against contamination? To keep the system clean and reduce wear, simply mount this RS PRO spin-on filter can inline using the threaded mounting holes on the top of the head.


A three-function valve provides efficient operation. Once the opening pressure is attained, a forward bypass valve enables unfiltered oil to bypass the contaminated element. A reverse flow valve allows reverse flow through the filter head, eliminating the need to back-flush the element. During element changes, a non-return valve stops the supply line from draining.


The filter bowl is composed of cold-drawn steel and the filter head is made of spheroidal graphite cast iron, making it a long-lasting component that can withstand a variety of industrial applications. These types of low-pressure filters are commonly found in agricultural and mining machinery.

Features and Benefits

• BSP (British Standard Pipe) 3/4 (Filter), G 3/4 (Element) connection thread


• Filtration size of 10 μm


• Maximum flow rate of 65 L/min


• Maximum operating pressure of 12 bar


• Operating temperature of -32ºC to +100ºC


• Nitrile rubber seal


• Thread size of 3/4 in


• BSP (Filter), G (Element/Indicator) thread standard
