SKF HK 1622 16mm I.D Needle Roller Bearing, 22mm O.D, Роликовый подшипник

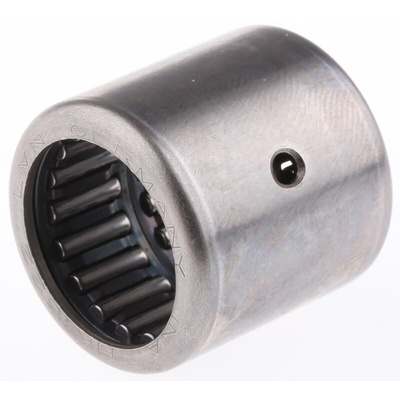

SKF Roller Bearing, Needle Bearing Type, 16mm ID, 22mm OD, 22mm Race Width - HK 1622

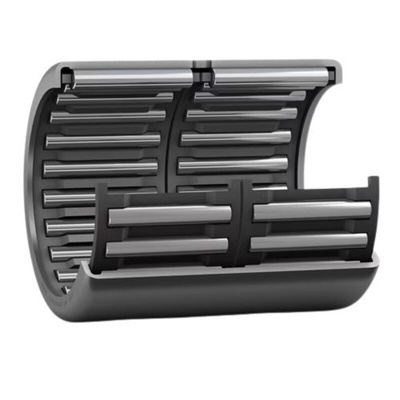

Rev up your moving components with this high-speed needle roller bearing from SKF. As a drawn-cup type, it's ideal for systems where the housing bore can't also be used as a raceway. By removing the inner ring, this component cuts down on bulk to save space. Two rows of bearings ramp up its stiffness to boost stability at high speed. With high 12.8kN dynamic and 19.6kN static load ratings, this tough bearing holds its own in heavy-duty machinery.

Features & Benefits

• Bearing steel is heat-resistant to stand firm through fast-paced processes
• Can be relubricated as needed to minimise friction and maintain top-notch performance
• Light 24g weight won't strain even slim shafts

Applications

• Automotive workshops
• Manufacturing industry
• Aerospace engineering

What's the difference between reference and limiting speeds?

Reference speed is how fast the bearing can go before it overheats and the limiting rate is the maximum it can hit before the unit breaks down. A reference speed of 14,000r/min and a limiting speed of 16,000r/min mean this device can keep up with demanding applications.

What if I need an inner ring?

If you need an inner ring to complete your design, you can add an accessory (209-2218).

Needle Roller Bearings Data Sheet

Datasheet - HK 1622
