SKF HK 2020 20mm I.D Needle Roller Bearing, 26mm O.D, Роликовый подшипник

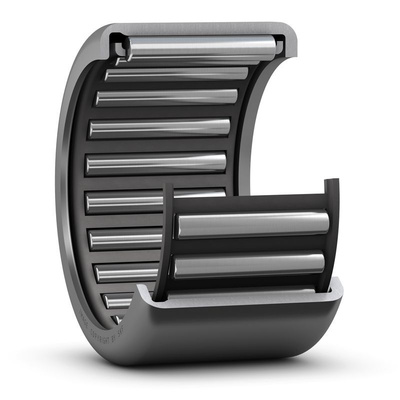

SKF Drawn-Cup Needle-Roller Bearing, 20mm ID, 26mm OD - HK 2020

Looking for a reliable roller bearing for applications where space is tight? Choose this drawn-cup needle-roller bearing from SKF. Its compact inside diameter of 20mm and outside diameter of 26mm mean it can easily fit into tight spaces. Multiple needle rollers are housed in its deep-drawn outer ring to enable a high radial load-carrying capacity. The cage is made of sheet steel for enhanced strength and resistance to corrosion, so it's a reliable choice for demanding environments. As this bearing doesn't have an inner ring, you can combine it with a hardened or ground shaft according to your needs, making it a versatile choice.

• Non-separable design for simple mounting
• Open-ended design for ease of re-lubrication
• Light weight of 0.024kg to prevent strain on your equipment
• Dynamic load rating of 15.1kN and static load rating of 26.5kN to support heavy-duty loads

Applications

• Textile processing
• Gearboxes
• Material handling
• Power tools

What speeds can this bearing support?

This bearing is capable of supporting very high speeds with minimal friction as it has a limiting speed of 14,000rpm (rotations per minute).

Needle Roller Bearings Data Sheet

Datasheet - HK 2020
