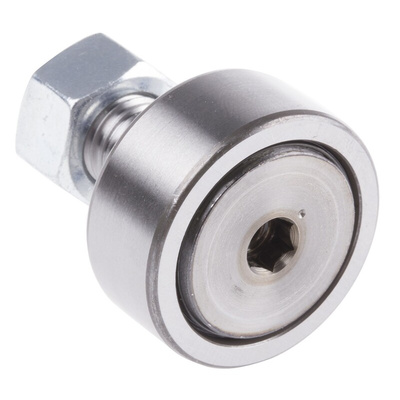

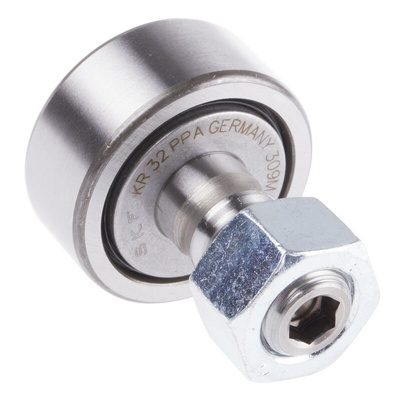

SKF Stud Cam Follower KR 32PP, 12mm ID, 32mm OD, Опорный ролик

SKF Stud Type Track Rollers

Cam followers of the KR design are fitted with needle rollers and have a thick outer ring making them suitable for shock loads.

Concentric cam follower
The outer ring is guided via the integral flange at the head of the stud and the pressed on side washer
SKF Cam followers on the PPA design have axial slide rings of polyamide 66
These slide rings reduce the friction and give relatively cool operation that is advantageous for the grease service life
In the radial direction the slide ring forms a narrow gap to the outer ring that protects against course contaminations
Operating temperature range is -30 to +100°C
The PPA design has an improved profile of the runner surface which gives a better stress distribution, also under misaligned conditions
The PPA design has a crowned running surface
Supplied with grease nipples
Lubrication can be done at the Head or thread end, except KR 16 & 19 which can only be lubricated at the head

SKF Cam Follower, 12mm Bore, Concentric Bearing - KR 32PP

This cam follower from SKF features a 32mm roller bearing with a 12mm bore size. It is designed to meet the needs of professionals in the automation, electronics, electrical, and mechanical industries. With a dynamic load rating of 7810 N and a static load rating of 9800 N, this cam follower offers robust performance and reliability.

Features & Benefits

• Concentric roller bearing type for precise tracking
• Stud design for ease of installation and use
• Roller diametre of 32mm and length of 14mm for optimal performance
• Static load rating of 9800 N ensures durability under heavy loads
• Dynamic load rating of 7810 N for efficient operation
• Designed for a bore size of 12mm, perfect for a range of applications
• Ring slide and track system bearing type for smooth operation

Applications

• Ideal for use in conveyor systems for accurate tracking
• Suitable for use in robotic arms for precise movement control
• Perfect for automation equipment in manufacturing plants
• Can be used in packaging machinery for consistent performance

Can it handle heavy loads?

Yes, the SKF cam follower has a static load rating of 9800 N, making it suitable for applications with heavy loads.

Will it provide smooth tracking in conveyor systems?

Yes, the concentric roller bearing type ensures precise tracking for optimal performance.

Is it easy to install in automation equipment?

Yes, the stud design of the cam follower makes it easy to install and use in various applications.

Datasheet

Catalogue - Rolling Bearings
