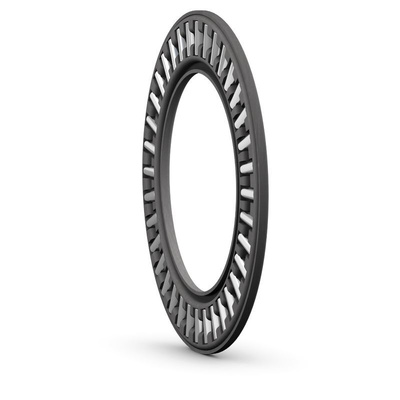

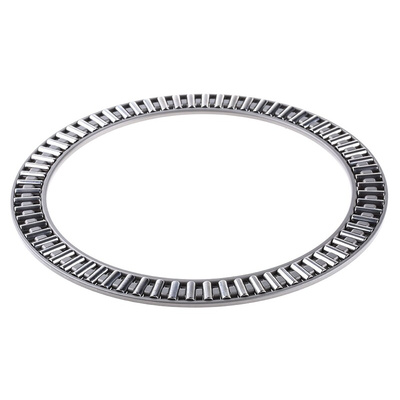

SKF AXK 160200 160mm I.D Thrust Needle Roller Bearing, 200mm O.D, Роликовый подшипник

SKF Roller Bearing, Thrust Needle Bearing Type, 160mm ID, 200mm OD - AXK 160200

Minimise friction between moving parts in your industrial machinery with this SKF thrust needle roller bearing. Its sheet steel cage houses precisely spaced needle rollers arranged along a parallel bore to spread and support large axial loads and handle shock loads without fatigue or misalignment. A race width of 5mm and an outer diameter of 200mm means this unit can be used instead of standard washers without taking up extra space.

• Dynamic load rating of 125kN and fatigue limit load of 106kN to withstand heavy weights at high speeds without loss of performance
• Precision design minimises vibration to save energy and reduce noise
• Sheet steel cage housing for durability and resistance to corrosion

Applications

• Automotive industry
• Hydraulic pumps
• Power tools

What's the maximum speed this needle roller can sustain?

This needle roller bearing has a maximum speed of 850r/min when lubricated with oil, so can be used for medium-speed and high-speed rotating equipment. With grease, it sustains 630r/min.

Does this roller bearing operate in more than one direction?

No, this roller bearing only supports loads operating in one direction.
