SKF AXK 4060 40mm I.D Thrust Needle Roller Bearing, 60mm O.D, Роликовый подшипник

SKF Needle Roller and Cage Assemblies Series AXK

SKF needle roller thrust bearings can support heavy axial loads, are insensitive to shock loads and provide stiff bearing arrangements which require a minimum of axial space.

Single direction bearings and can only accommodate axial loads acting in one direction
Particularly compact bearing arrangements can be made, taking up no more space than a conventional thrust washer, if the faces of adjacent machine components can serve as raceways for a needle roller and cage thrust assembly

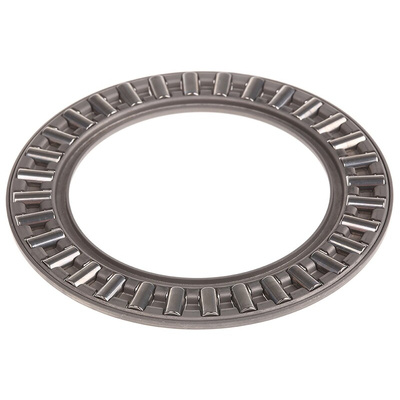

SKF Roller Bearing, Thrust Needle Type, 40mm ID, 60mm OD - AXK 4060

Are you looking for a way to reduce friction and noise in your industrial equipment? Choose this roller bearing from SKF. It's a thrust needle type, meaning it uses compact cylindrical rollers to maintain separation between the parts and handle axial loads. These cylindrical rolling parts achieve high surface contact, letting the unit support dynamic loads up to 25kN. With a compact 40mm inner diameter and a 60mm outer diameter, this unit won't take up more space in your setup than a standard thrust washer.

Features & Benefits

• Corrosion-resistant sheet steel cage material is safe to use in demanding and damp environments
• Fatigue limit load of 13.7kN for a long service life
• Static load rating of 114kN for reliably high performance under pressure
• Widely compatible with bearing washers to suit the needs of your application

Applications

• Mechanical engineering
• Conveyor systems
• Hydraulic installations
• Assembly lines

What's the maximum speed that this roller bearing can achieve?

This roller bearing achieves reliably high maximum speeds of 1700rpm for greased applications and 2400rpm with oil.

Needle Roller Bearings Data Sheet

Datasheet - AXK 4060
