SKF HK 2520 25mm I.D Needle Roller Bearing, 32mm O.D, Роликовый подшипник

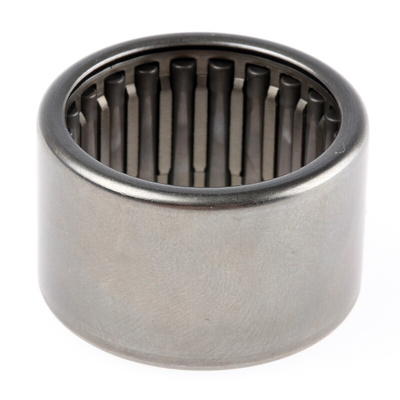

SKF Needle Roller Bearing, 32mm OD, 25mm ID - HK 2520

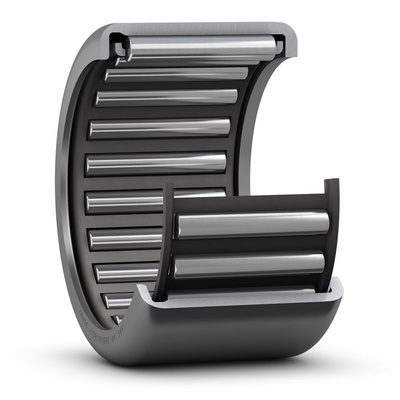

This needle roller bearing from SKF offers a convenient solution where space is at a premium, thanks to its compact design. The low sectional height is combined with a high load-carrying capacity. This type of bearing is suitable for use with a hardened and ground shaft, but can also be used in conjunction with an inner ring for operations involving an unhardened shaft. It's ideal for situations where the housing bore can't be used as a raceway for a needle roller cage assembly.

• Sheet-steel cage material combines light weight with strength
• Open end makes it suitable for use in uncontaminated environments where the lubricant can travel freely around the bearing

Applications

• Gearboxes
• Air compressors
• Power transmission systems

Why would I choose a needle roller bearing?

The main advantage offered by a needle roller bearing is the ability to handle fairly high radial loads with a compact footprint. This combination makes it the preferred choice of bearing in many automotive applications.

What material are roller bearings made from?

Roller bearings can be made from a wide variety of materials, including steel, plastic and aluminium. As this roller bearing has a cage made from steel, it's corrosion-resistant and can be used in humid conditions.

Needle Roller Bearings Data Sheet

0514029_Datasheet_en
