SKF HK 0609 6mm I.D Needle Roller Bearing, 10mm O.D, Роликовый подшипник

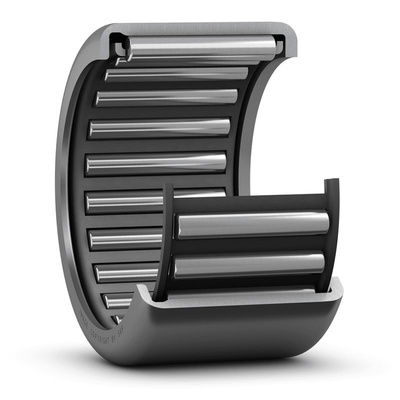

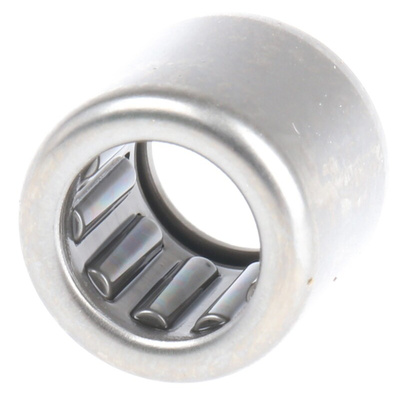

SKF Needle Roller Bearing, 6 mm ID - HK 0609

Use this SKF needle roller bearing to ease the rotary motion of a shaft. The deep-drawn outer wall provides an increased contact area, making it particularly capable of supporting large loads. The bearing's open-ended construction allows for more effective circulation of lubricant, and it enables a maximum speed of 32000 rpm when oil is used. It's especially useful for situations where a very compact and economic bearing arrangement is called for. You'll find needle roller bearings such as this in automotive engineering applications.

• Parallel cage bore
• Sheet steel
• Dynamic load rating of 2.81 kN
• Limit load of 285 N
• Inside diameter of 6 mm
• Maximum speed (grease) of 20000 rpm
• Maximum speed (oil) of 32000 rpm
• Outside diameter of 10 mm
• Race width of 9 mm
• Static load rating of 2.7 kN

Application Information

• Manufacturing
• Construction
• Automotive engineering

Can this bearing be used directly on a shaft?

In general, this needle roller bearing is used directly on a shaft that has already been ground and hardened. In cases where the shaft isn't hard enough, you can use the bearing in conjunction with an inner ring.

Needle Roller Bearings Data Sheet
