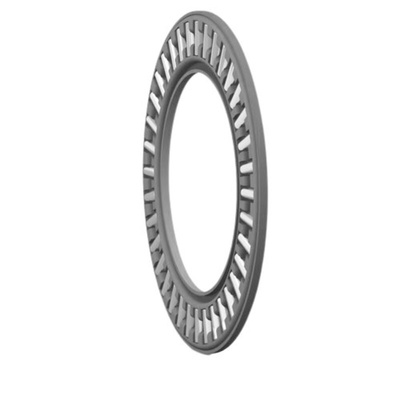

SKF AXK 120155 120mm I.D Thrust Needle Needle Roller Thrust Bearing, 155mm O.D, Роликовый подшипник

SKF Roller Bearing, Sheet Steel Cage, 120mm ID, 155mm OD, G2 Roller Grade - AXK 120155

When you've got significant axial loads to handle, get this thrust-type roller bearing from SKF on your team. The needle roller design means it can support large axial loads relative to its size. With a race width of just 4mm and a 680kN static load rating, it's a high-performer. The bearing's 1,300r/min reference speed makes it ideal for use with applications running at low to moderate rates, such as in industrial gearboxes.

Features & Benefits

• Heat-stabilized up to +120°C for use in challenging environments
• Weighs just 130g, so it doesn't add unnecessary load to your setup
• Easy to install thanks to its minimal axial space requirements
• Robust steel construction and sheet steel cage for durability

Applications

• Agricultural machinery
• Robotics systems
• HVAC components

Should I use grease or oil to lubricate this roller bearing?

You can use either, although which you pick will affect the speed rating of the unit. If you apply grease, the bearing will typically tun at 800r/min. With oil, you can boost that up to 1,100r/min.
