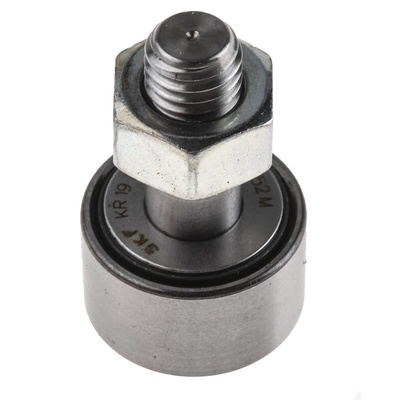

SKF Stud Cam Follower KR 19PP, 8mm ID, 19mm OD, Опорный ролик

SKF Stud Cam Follower, 8 mm ID - KR19-PPA

This SKF stud cam follower is used in systems such as cam drives that convert rotary motion into linear motion. It has a thick outer ring and can handle heavy shock loads. That means it's suitable for use in applications that require rapid acceleration or deceleration. The unit features a needle roller to reduce friction on the rotating surface. This thin, cylindrical roller also provides more contact with the races, giving the follower the ability to support a greater load.

• Concentric ring slide and track system bearing type
• Bore size of 8 mm
• Dynamic load rating of 4180 N
• Static load rating of 4750 N
• Concentric roller diameter of 19 mm
• Roller length of 11 mm

Application Information

• Automobile manufacturing
• Air compression
• Tooling and machining

How do I assemble this cam follower?

You can secure this stud cam follower onto a machine frame with a nut. Use an Allen key in the hexagonal recess in the head of the stud to hold it in place while the nut is tightened.

How do I oil this stud cam follower?

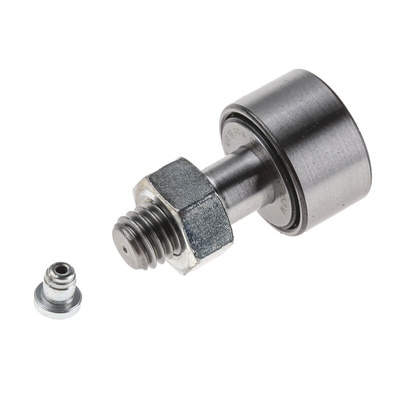

This unit has a re-lubrication hole at its head and can be greased with a pressed-in grease fitting accessory from SKF.

KR 19 PP Datasheet
