SKF AXK 1226 12mm I.D Thrust Needle Roller Bearing, 26mm O.D, Роликовый подшипник

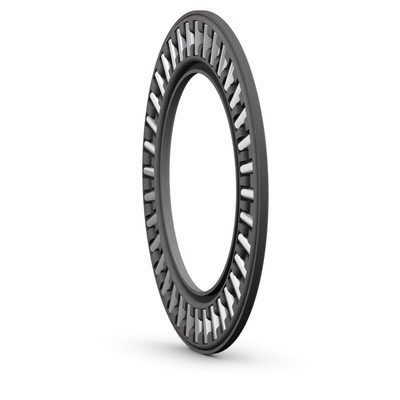

SKF Thrust Needle Roller Bearing, 12mm ID, 26mm OD - AXK 1226

Ensure the safe handling of axial loads in your system with this needle roller bearing from SKF. It helps to keep shafts aligned in your setup when placed in the same acting direction. This bearing can support heavy components thanks to its high static weight rating of 30kN (kilonewtons) and dynamic rating of 9.15kN. You can fit it with a 12mm sleeve to keep your moving parts from touching each other. This will minimise friction, noise and erosion, ensuring unit and system longevity.

• Compact outer diameter of 26mm makes it suitable for installation in small spaces
• Made from corrosion-resistant steel for use in harsh environments
• High fatigue limit load of 3.25kN ensures unit longevity
• Single row of rolling elements with deep raceways for efficient axial load-bearing

Applications

• Automotive engines
• Electric motors
• Aviation equipment

What’s the speed of this roller bearing?

When lubricated with grease, this bearing will move at maximum speed of 3400rpm (revolutions per minute). If it’s lubricated with oil, it will move at a maximum speed of 4500rpm.

Needle Roller Bearings Data Sheet

Specification Sheet - AXK 1226
