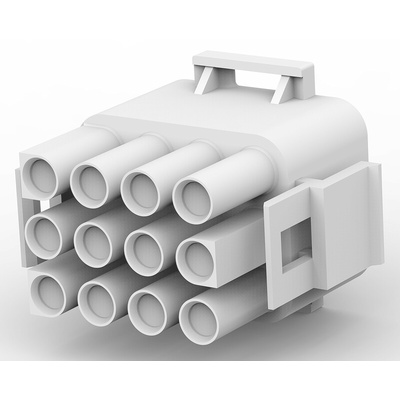

350735-4, TE Connectivity, Universal MATE-N-LOK Male Connector Housing, 6.35mm Pitch, 12 Way, 3 Row, Корпус разъема

TE Connectivity Universal Mate-N-Lok Connector Vertical Pin Housing

TE Connectivity universal Mate-N-Lok vertical pin housing connectors are suitable for wire to board connector applications (using pin and socket header connectors found elsewhere in this range) and panel mount or free hanging and can mate with Universal Mate-N-lok II housing connectors. They have a low mating force, with dual locking lances for optimum contact stability. The contacts are completely enclosed in the housing and are removable, featuring positive polarisation and rear cavity identification on the connector.

Features and benefits:

•Positive locking housing with window latch
•Free hanging or panel mount
•Rear cavity connector identification
•Pin and socket contacts can be mixed in the same connector housing
•Connector contacts are 0.250 (6.35mm) centreline spacing
•Solderability meets MIL-STD 202 method 208.
•Locking mechanism with a clear 'click' when mated

Applications:

•Consumer Electronics
•Commercial usage
•Power supplies
•HVAC
•Lighting
•Portable devices

TE Connectivity Universal MATE-N-LOK™ Range

Soft Shell Pin and Socket Connectors Data Sheet

Customer Drawing 350735
