V15H16-CZ100A06, Honeywell Roller Lever Micro Switch, Quick Connect Terminal, 16 A @ 250 V ac, SP-CO, IP67, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

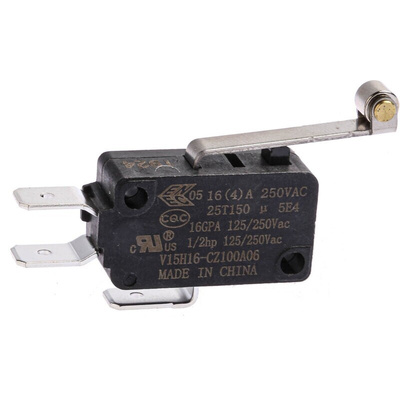

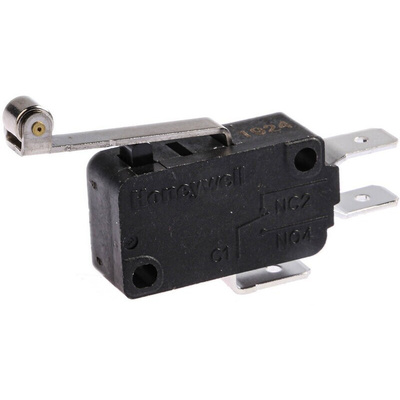

Honeywell Roller Lever Microswitch, 16A, 250V AC - V15 Series - V15H16-CZ100A06

Use this Honeywell roller lever microswitch to open and close contacts in applications that require an operating force greater than 100g. The component has a roller lever actuator that activates when an object moves past it for ease of use. It has silver cadmium oxide contacts that offer effective conductivity and corrosion resistance for a reliable connection. It's housed in a durable and wear-resistant polybutylene terephthalate (PBT) material, so you can use it under harsh conditions. This material also provides effective insulation, protecting you from electrical hazards.

Features & Benefits

• Wide operating temperature range of -25°C to +150°C for use in demanding conditions
• Maximum current rating of 16A at 250V AC for optimal energy efficiency
• Direct wire termination saves you time and effort during installation
• Compact construction for use in applications with limited space

Applications

• Vending machines
• Water heaters
• Industrial control
• Home appliances

Does this component need to be replaced frequently?

This roller lever microswitch has a mechanical life of 5,000,000 cycles and an electrical life of 50,000 operations. This means it offers reliable performance for a long time and won't need frequent replacement..

Approvals

ENEC, UL, CQC
