V15H16-CZ100A03, Honeywell Long Leaf Lever Micro Switch, Quick Connect Terminal, 16 A @ 250 V ac, SPDT, IP67, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

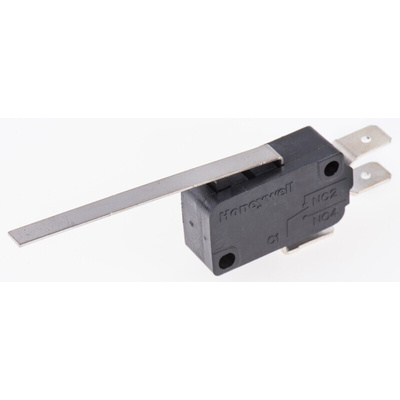

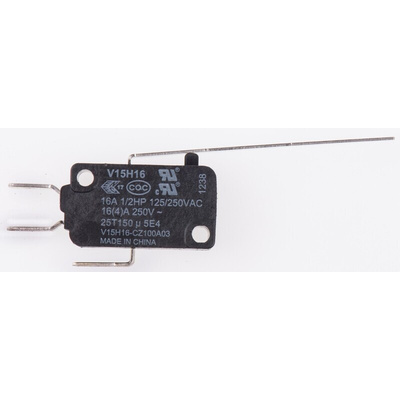

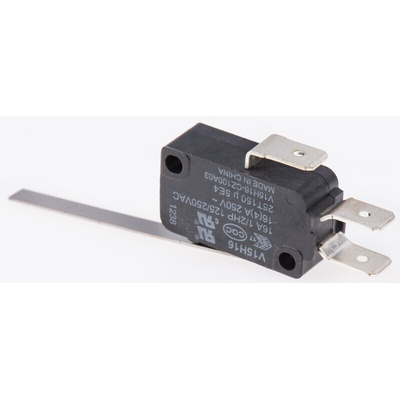

Honeywell Long Leaf Lever Microswitch, 16A at 250V AC, NO/NC - V15 Series - V15H16-CZ100A03

This Honeywell microswitch will help prevent overloads and short circuits in your small electrical appliances. The long leaf lever-style actuator is pushed down to switch off the current to prevent electrical damage to your machinery. As it's a microswitch, the device is small enough to fit into compact spaces. It's designed for use with low-powered currents of up to 16A at 250V AC (alternating current).

Features & Benefits

• Long lifespan of at least 50,000 electrical operations for long-lasting use
• Polybutylene terephthalate (PBT) housing material protects the switch from impact and wear
• Wide operating temperature range of -25°C to +150°C for use in a variety of demanding environments
• Silver cadmium oxide contacts are resistant to corrosion for a reliable electrical connection

Applications

• Door releases
• Domestic appliances
• Textile machinery
• Packaging equipment

What type of configuration does this microswitch have?

This microswitch has a SPDT (single pole double throw) configuration. This means it has one input that connects and switches between two outputs for efficient operation. It has one NO (normally open) and one NC (normally closed) contact for enhanced versatility.

Approvals

ENEC, UL, CQC

Microswitch V15 - UL-Canada

Microswitch V15 - ENEC

Microswitch V15 - CQC

Microswitch V15 - UL

CQC Certificate for Honeywell V15 Microswitch

Datasheet

Installation Sheet - V15 Switches
