V15T16-EZ100A05, Honeywell Short Roller Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

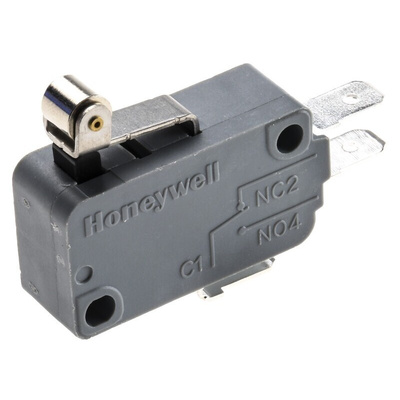

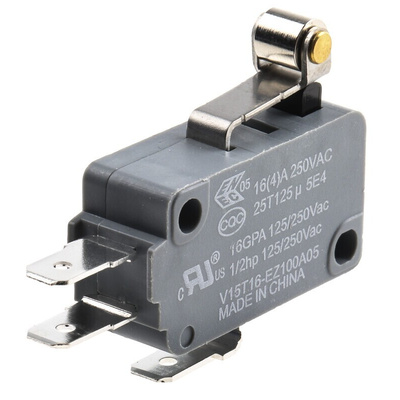

Honeywell Short Roller Lever Microswitch, 16A, 0.96N Operating Force - V15 Series - V15T16-EZ100A05

Use this roller lever microswitch from Honeywell for object detection in industrial machinery. It works by sending a signal to your connected equipment when an object makes contact with its roller. This switch has silver cadmium oxide contacts that are highly conductive and resistant to corrosion for a stable and reliable connection. Its polybutylene terephthalate (PBT) housing is durable and resistant to impact, so it's a practical choice for use in harsh environments. Thanks to its quick-connect terminals, it's simple to install without the need for specialised tools.

Features & Benefits

• Robust mechanical lifespan of 1,000,000 operations for long-lasting performance
• Wide operating temperature range of -25°C to +125°C for use in demanding conditions
• Low operating force of 0.96N for a quick response to contact with an object
• Current rating of 16A for use in high-current systems

Applications

• Industrial control systems
• Water heaters
• Elevators

Is this microswitch resistant to fire?

The microswitch's PBT housing is self-extinguishing, which means it stops burning within a short time in the event of a fire for enhanced safety.

Approvals

ENEC, UL, CQC

Microswitch V15 - UL-Canada

Microswitch V15 - ENEC

Microswitch V15 - CQC

Microswitch V15 - UL

CQC Certificate for Honeywell V15 Microswitch

Datasheet

0515688_Installation Sheet_en
