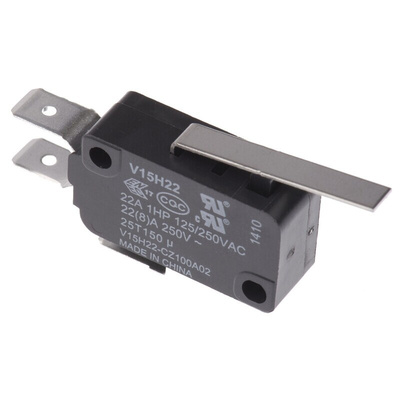

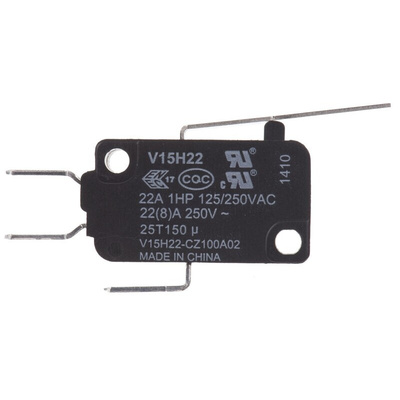

V15H22-CZ100A02, Honeywell Leaf Lever Micro Switch, Quick Connect Terminal, 22 A @ 250 V ac, SPDT, IP67, Микропереключатель

Honeywell 22A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 22A and high temperature 150°C
Contact configurations include SPDT
Available with various actuator options and fitted with standard 6.3mmx0.8mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 16A versions see typically stock no 515-739
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

Microswitch V15 - UL-Canada

Microswitch V15 - ENEC

Microswitch V15 - CQC

Microswitch V15 - UL
