V15H22-CZ100, Honeywell Plunger Micro Switch, Quick Connect Terminal, 22 A @ 250 V ac, SPDT, IP67, Микропереключатель

Honeywell 22A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 22A and high temperature 150°C
Contact configurations include SPDT
Available with various actuator options and fitted with standard 6.3mmx0.8mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 16A versions see typically stock no 515-739
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

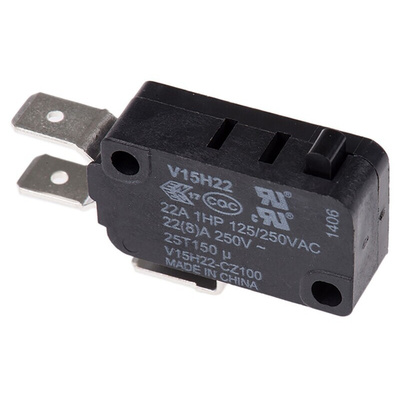

Honeywell Plunger Microswitch, NO/NC, 22A - V15 Series - V15H22-CZ100

This plunger microswitch from Honeywell provides a simple control solution for your electrical appliances. It has a single pole double throw (SPDT) configuration, which means it has a single input that can control two outputs. This makes it suitable for use as a simple on/off switch.
The microswitch has silver cadmium contacts that are highly conductive for a reliable connection. Its polyethylene terephthalate (PET) housing makes it durable and resistant to impact, so it's suitable for use in harsh environments. You'll find it used in a variety of domestic, commercial and industrial applications.

Features & Benefits

• Wide operating temperature range of -25°C to +150°C for use in demanding conditions
• Long mechanical service life of 5,000,000 operations for long-lasting performance
• Quick-connect terminals for fast and easy installation
• Compact dimensions of 15.9 (height) x 10.3 (width) x 27.8mm (depth) to fit into small spaces

Applications

• Water heaters
• Game controllers and joysticks
• Vending machines

What are the voltage and current ratings of this switch's contacts?

The contacts on this microswitch have a voltage rating of 250V AC (alternating current) and a current rating of 22A, making the switch suitable for use in low-voltage applications.
