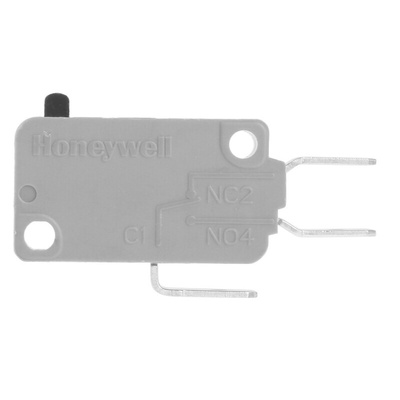

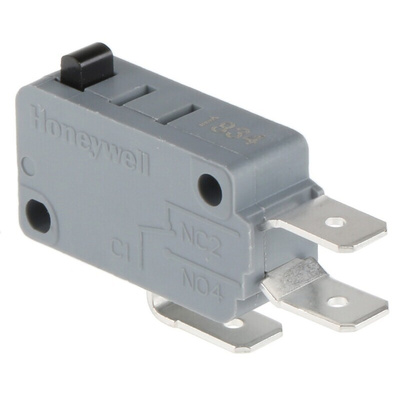

V15T16-CZ100, Honeywell Plunger Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

Honeywell Plunger Microswitch, 16A, 250V AC - V15 Series - V15T16-CZ100

This Honeywell plunger microswitch is commonly employed as a safety device. It's designed to open a circuit when needed, preventing a machine from turning on or a door from closing when someone is in the way. The quick-connect terminals let you easily create a reliable electrical connection without the need for soldering. It has an extremely fast operating speed of 0.1 to 1mm per second for quick response times. Use this microswitch for applications needing over 15g of operating force.

Features & Benefits

• Broad operating temperature range of -25°C to +125°C that allows for usage in extreme environments
• Polybutylene terephthalate (PBT) thermoplastic housing ensures superior durability and impact resistance
• Silver cadmium oxide contacts for high electrical conductivity and increased reliability
• Robust mechanical life of 5,000,000 operations for long-term performance

Applications

• Water heaters
• Gaming machines
• Industrial controls
• Home appliances

Are there any safety precautions I should take when using this switch?

Avoid storing or using the switch in an environment where corrosive gases such as hydrogen sulfide are present to avoid damage to the device.

Approvals

ENEC, UL, CQC

V-Basic Standard V15 Series Data Sheet

Microswitch V15 - UL-Canada

Microswitch V15 - ENEC

Microswitch V15 - CQC

Microswitch V15 - UL

CQC Certificate for Honeywell V15 Microswitch

Instruction Sheet

Range Guide - Basic, Toggle & Rocker Switches
