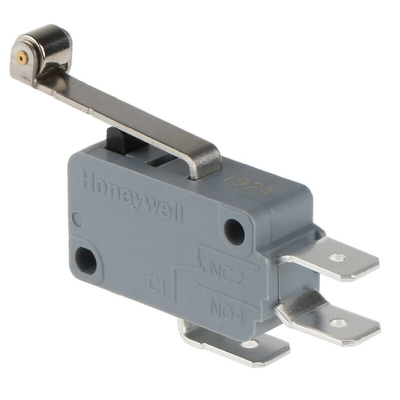

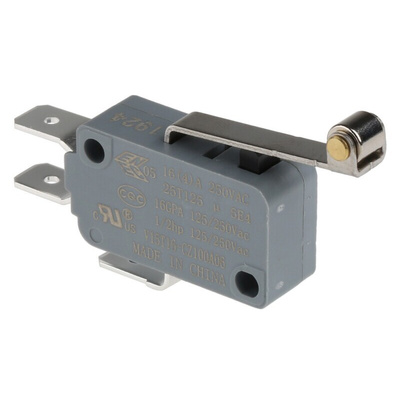

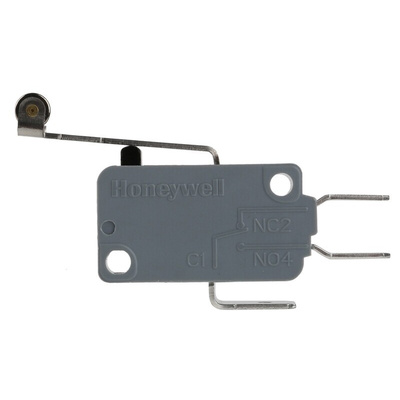

V15T16-CZ100A06, Honeywell Roller Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SP-CO, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

Honeywell Roller Lever Microswitch, 16A, PBT - V15 Series -V15T16-CZ100A06

This Honeywell microswitch is a mechanically operated device designed to automate the control of industrial equipment. It's housed in a polybutylene terephthalate (PBT) thermoplastic material that's resistant to impact and heat for reliable performance in harsh environments. It has silver cadmium oxide contacts that provide superior conductivity to ensure a secure connection. It also has a maximum current rating of 16A at 250V AC, allowing for energy-efficient operation.

Features & Benefits

• Long mechanical life cycle of 5,000,000 operations for reliable, long-lasting operation
• Operating force of 0.98N (Newtons) and release force of 0.25N for a sensitive response to contact

Applications

• Water heaters
• Domestic appliances
• Gaming machines
• Industrial controls
• Vending machines

What factors should I consider when wiring this component?

To properly wire this component, ensure your spade terminals are the right size and use a wire that's rated for the electrical load and temperature of your application. Provide a strain relief when there's a risk of forces being passed from the lead wires to the switch terminals to reduce wear. For electrical safety, make sure to inspect and replace any wires with worn insulation regularly.
