V15T16-CZ100A05, Honeywell Short Roller Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

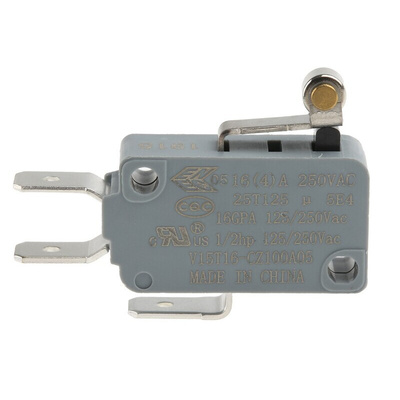

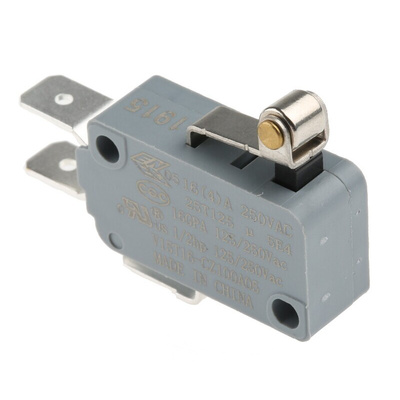

Honeywell SPDT Short Roller-Lever Microswitch, NO/NC, 16A - V15 Series - V15T16-CZ100A05

When you need a reliable solution for commercial and industrial appliances, use this roller-lever microswitch from Honeywell. Its 27.8mm length is a handy size for fitting into tight spaces on smaller equipment such as vending machines and safety controls. The short lever is capable of working with operating forces from 0.15 to 3.92N (Newtons) and from 15g to 400g, in spite of its compact size. With a mechanical lifespan of 5,000,000 cycles, this switch will keep doing its job reliably for a long time, reducing the need for maintenance and replacement.

Features & Benefits

• Multiple contact configurations of SPDT (single pole double throw) and NC/NO (normally open or normally closed) for greater flexibility
• Silver cadmium oxide contacts for high arc-resistance
• Strong PET (polybutylene terephthalate) thermoplastic case for increased durability

Applications

• Commercial appliances
• Building technologies
• Small to medium household appliances

What's the current rating of this microswitch?

This microswitch has a current rating of 16A at 250V AC. This means it's suitable for many high-powered applications.

Is this switch easy to install?

Yes, it has quick-connect tab terminals for easy wiring and pre-drilled holes ready for mounting.

Approvals

ENEC, UL, CQC
