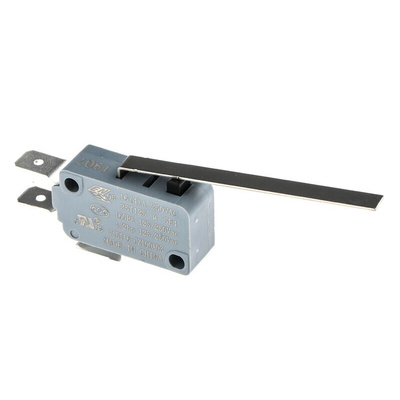

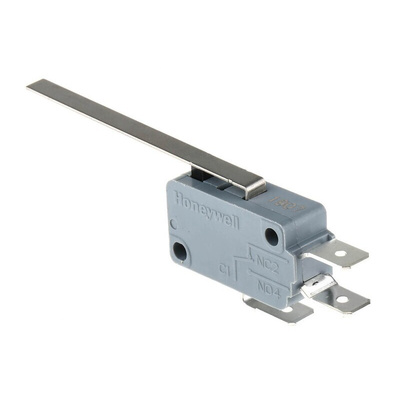

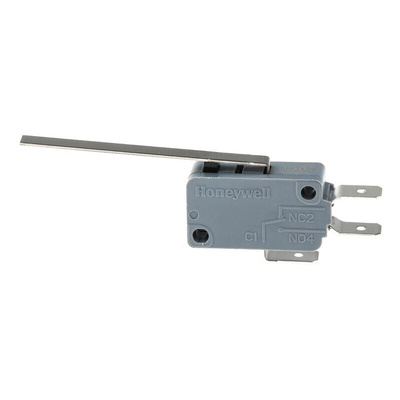

V15T16-CZ100A03, Honeywell Long Leaf Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

Honeywell Long Leaf Lever Microswitch, 250V AC, Polybutylene Terephthalate - V15 Series - V15T16-CZ100A03

This sensitive micro limit switch from Honeywell detects the presence and absence of objects and triggers actions for effective automation. It consists of a spring and a set of contacts that convert mechanical energy from contact with a long leaf lever actuator to an electrical output. Its highly conductive silver cadmium contacts provide a stable and reliable connection. These contacts are also corrosion-resistant, so they won't decay due to rust. You'll find this type of switch used in the electrical and automation industries.

Features & Benefits

• Polybutylene terephthalate (PBT) housing for durability and impact resistance
• Robust mechanical life of 5,000,000 operations for reliable, long-term performance
• Wide operating temperature range of -25°C to +125°C for use in demanding conditions
• Operating force of 0.98N (Newtons) and release force of 0.25N for precise switching function

Applications

• Heating, ventilation and air conditioning (HVAC) systems
• Surveillance systems
• Microwave ovens

How do I mount this microswitch?

This microswitch is easy to install. Simply fasten it to a flat surface with screws through its two mounting holes. For a more secure connection, use spring washers under the screw heads. You can also use a thread lock adhesive.

Approvals

ENEC, UL, CQC

Microswitch V15 - UL-Canada

Microswitch V15 - ENEC

Microswitch V15 - CQC

Microswitch V15 - UL

CQC Certificate for Honeywell V15 Microswitch

Data Sheet

Installation Sheet - V15 Switches
