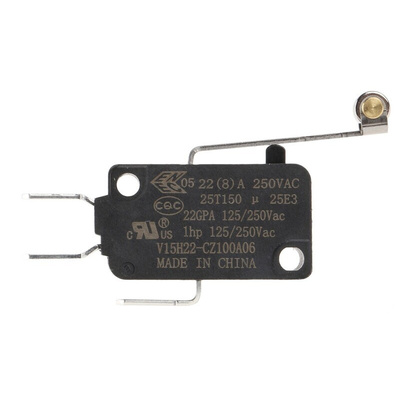

V15H22-CZ100A06, Honeywell Roller Lever Micro Switch, Quick Connect Terminal, 22 A @ 250 V ac, SPDT, IP67, Микропереключатель

Honeywell 22A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 22A and high temperature 150°C
Contact configurations include SPDT
Available with various actuator options and fitted with standard 6.3mmx0.8mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 16A versions see typically stock no 515-739
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

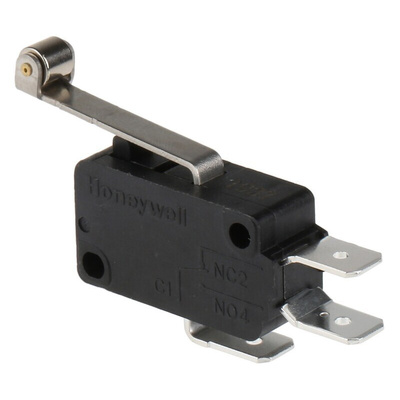

Honeywell Roller Lever Microswitch, 22A, 250V AC - V15 Series - V15H22-CZ100A06

Use this hardwearing microswitch from Honeywell as a safety device to prevent unauthorised access to machines when they're running. It works by converting mechanical energy applied to a roller actuator into an electrical output. It has a housing made of a thermoplastic material that provides durability and impact resistance, so you can use it even in harsh environments. This unit also features a reliable single pole double throw (SPDT) contact configuration, so you can use it as an on/off switch. It's suitable for use in a variety of domestic and commercial applications.

Features & Benefits

• Silver cadmium oxide contacts are highly conductive for a secure and reliable electrical connection
• Wide operating temperature range of -25°C to +150°C for use in harsh conditions
• Robust mechanical life of 5,000,000 cycles and electrical life of 50,000 operations for long-lasting performance

Applications

• Furnaces
• Gaming machines
• Ice makers
• Power washers

What type of terminal does this microswitch have?

This microswitch is fitted with standard 6.3 x 0.8mm quick-connect terminals that allow for fast and reliable connection and disconnection without the need for soldering or specialised tools.

Microswitch V15 - UL-Canada

Microswitch V15 - ENEC

Microswitch V15 - CQC

Microswitch V15 - UL
