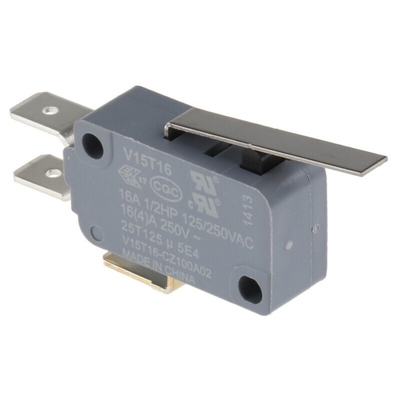

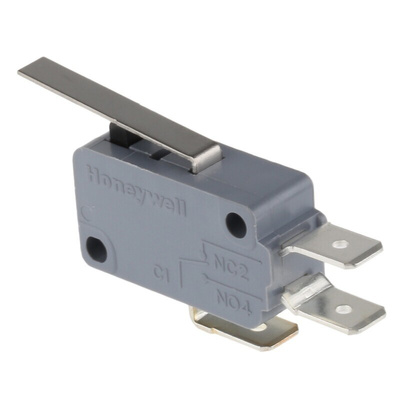

V15T16-CZ100A02, Honeywell Leaf Lever Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPDT, Микропереключатель

Honeywell 16A V3 style V15 series

Designed for enhanced reliability at great value
Suitable for applications requiring an operating force greater than 100g
Rated at 16A and available in 125°C versions (grey) or high temperature 150°C versions (black)
Contact configurations include SPDT and SPST-NC
Available with various actuator options and fitted with 6.3mm or 4.7mm quick connect terminals
Dimensions H15.9mm x W10.3mm x D27.8mm
For 22A versions see typically stock no 515-729
Service life: 5 million cycles (mechanical), 50,000 operations minimum (electrical)
Typical applications include water heaters, appliances, gaming machines, industrial controls, vending machines etc

Note

For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.

Approvals

ENEC, UL, CQC

Honeywell SPDT Leaf-Lever Microswitch, 16A, 250V AC - V15 Series - V15T16-CZ100A02

This reliable microswitch from Honeywell uses a leaf-lever actuator for simple and effective electromechanical action. It has a long lifespan and will keep working for at least 1,000,000 mechanical operations. This means you'll rarely need to replace it, saving you time on maintenance. The switch is well made with silver cadmium oxide contacts for high arc resistance. This protects the component by preventing high-voltage electricity from travelling along the surface of the device and damaging it. The PET (polybutylene terephthalate) thermoplastic case provides further insulation from electrical discharge.

Features & Benefits

• Operates at temperatures between -25°C and +125°C to work in demanding industrial environments
• Comes with tab terminals for quick and easy connection to your system
• Current rating of 16A at 250V AC to work with high-powered circuits
• Compact size with a length of 35.6mm including the lever, for installation in tight spaces

Applications

• Gaming machines
• Industrial processes and controls
• Water heaters

How do I configure this leaf-lever switch?

You can configure this leaf lever switch in a variety of ways, including SPDT (single pole, double throw) and SPST-NC (single pole, single throw, normally closed), giving you greater flexibility in how you set up your circuitry and equipment.
