DC3C-C3AA, ZF Button Micro Switch, Lead Wire Terminal, 100 mA @ 30 V dc, SPDT, IP6K7, Микропереключатель

IP67 V4 Microswitches (DC3 100mA)

Sealed switch with IP67 protection
Contact rating 100mA

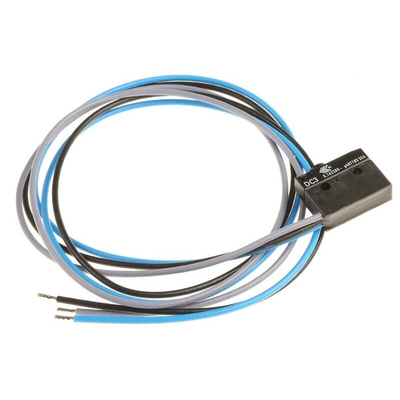

Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Silver-nickel contacts
Operating temperature range -40 → 105°C
Maximum operating temperature for pre-wired versions 105°C
Mechanical life >2x106
Height 11.65mm, Width 20mm, Depth 6.5mm

Approvals
ENEC; UL

IP67 V4 Microswitches (DC3 100mA)

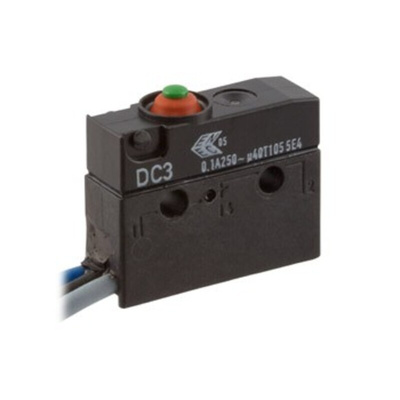

The ZF DC series subminiature Microswitch has a spherical-head button actuator and a contact rating of 10A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.

Features and Benefits

Operating force is 3.33N
Operating temperature ranges between -40°C and 105°C
Housing material is PET/PBT

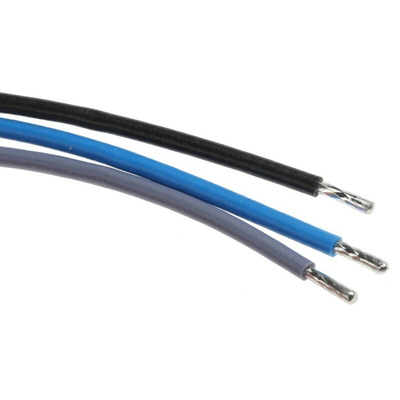

Wired leads type termination
Mechanical life is more than 1x106 operations

Certifications

IP67 rated
ENEC certified
UL approved
KEMA certified

Approvals

ENEC; UL
