GPTCRM01, ZF Short Roller Lever Micro Switch, Screw Terminal, 15 A @ 250 V ac, SPDT, Микропереключатель

ZF Microswitch

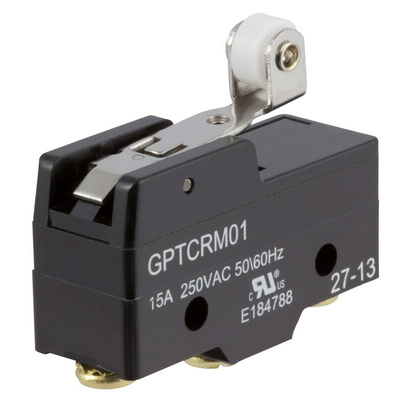

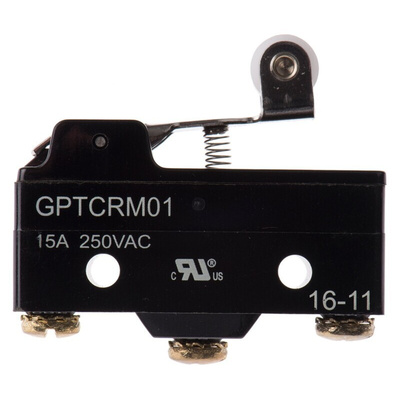

The ZF GP series Microswitch has a short roller actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.

Features and Benefits

Operating forces is 1.56N
Ultra small movement differential

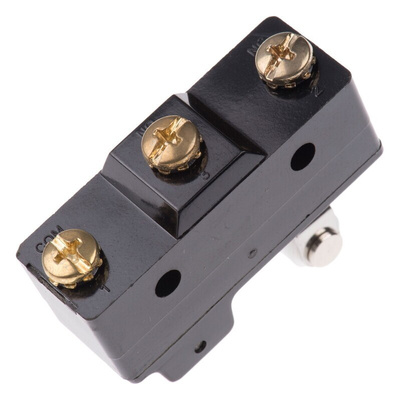

Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic

Certifications

UL 1054

Approvals

ENEC, UL

Heavy-Duty Snap Action GPSeries Data Sheet

Roller Switch Drawing
