RS PRO Vertical PP Float Switch, Float, 300mm Cable, Direct Load, 250V ac Max, 200V dc Max

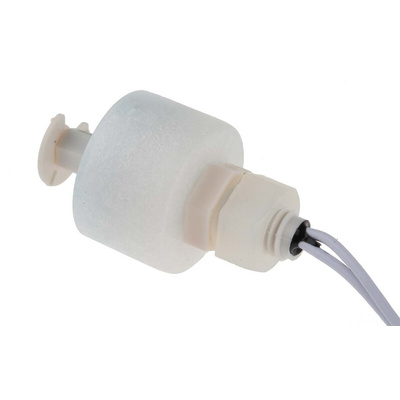

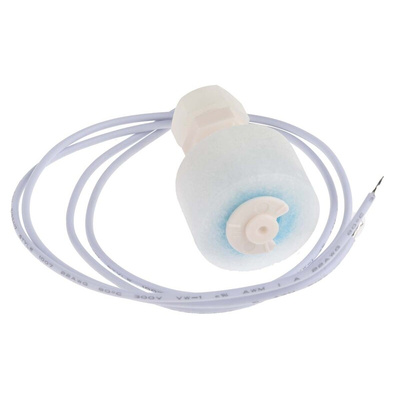

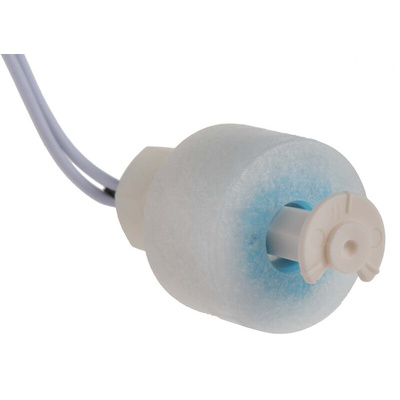

RS PRO 250V Miniature Vertical Float Switch (24 x 43mm)

A hardwearing food safe miniature float switch ideal for use with water dispensers, tank monitoring systems, vending machines, coffee machines and printing machines. Constructed from hardwearing Polypropylene housing sealed to IP67 for protection from contamination.
Designed for versatility the 250V float switch can be fitted to the top or bottom mounted within the tank and when mounted with the stem up the operating function is reversed.

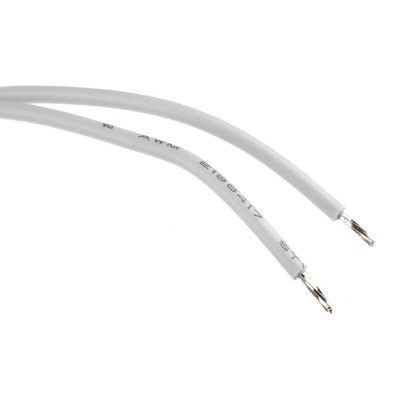

Easy to install the vertical food safe float switch is fitted with a 24 AWG 300mm UL 1007 lead and is suitable for operating temperatures of -20°C to +80°C.

Features and Benefits

Vertical float switch
Normally open (N/O)
Food safe
Polypropylene construction
Contact rating of 50W/VA
Switching current of 1.5A
Float diameter of 24mm
Total length of 43mm

Versions Available:

(519-236) - N/O 140Vac 24mm dia. 53mm long
(519-242) - N/O 140Vac 24mm dia 43mm long
(519-232) - N/O 250Vac 24mm dia 43mm long
(519-248) - N/O 130Vac 18mm dia 29.5mm long
(519-258) - N/O 250Vac 24mm dia 53mm long

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Datasheet
