RS PRO Vertical Float Switch, PP, Direct Load, Float, 300mm, 140V, 200V

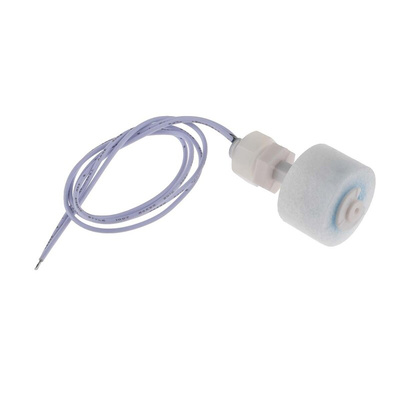

RS PRO Miniature Vertical Float Switch

This RS PRO float switch is ideal for water dispensers, tank monitoring systems, vending machines, coffee machines and printing machines. They are made from a Polypropelene housing which makes them suitable for a wide range of applications. They are even safe for food contact

What IP rating is it?
This float switch is IP67 rated.

How is it mounted?
This RS PRO float switch can be top or bottom mounted within a tank. When mounted with the stem up, the operating function is reversed.

What leads does it have?

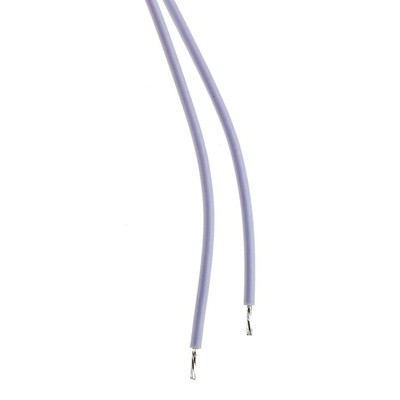

This float switch is fitted with 300mm UL 1007, AWG 24 leads

What temperature does it operate at?
You can use this float switch from -20°C to +80°C.

Versions Available:
(519-236) - N/O 140Vac 24mm dia. 53mm long
(519-242) - N/O 140Vac 24mm dia 43mm long
(519-232) - N/O 250Vac 24mm dia 43mm long
(519-248) - N/O 130Vac 18mm dia 29.5mm long
(519-258) - N/O 250Vac 24mm dia 53mm long

RS Pro Datasheet
