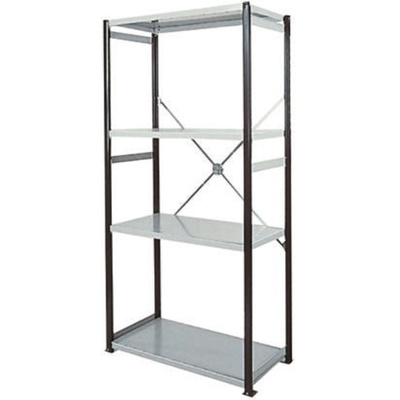

RS PRO Steel Grey Modular Shelving Open Starter Bay, 2100mm, 1000mm x 500mm, Стеллаж модульный

0519403
Производитель: RS PRO
Цена за шт.
246706.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS Pro Open Starter Bay

The basic unit required to construct the first bay. Dimensions : 2.1m x 1m

Note

Open starter bay units include one rear cross-brace.

Caution

The maximum safe working load per shelf is 160kg, to be uniformly distributed in both directions, maximum load per bay 1200kg.
Also: All runs of shelving require bracing. This must be in the form of a rear cross-brace assembly or a rear cladding kit and must be fitted at least one bay in six.

Modular Shelving

The RS modular shelving system has been designed as an integrated system in which each part slots together into standard modules. The shelf design incorporates a built-in box beam concept which creates inherent strength and rigidity as well as simplifying installation. A versatile system which is quick, easy and simple to erect or modify, with no nut and bolt assembly of the shelving. The uprights are perforated at 50 mm intervals to accept shelves that clip lock together with special shelf locking clips which have a wedging action when loaded, the greater the load, the stronger the structure. All major components are manufactured from steel with ’graphite’ grey uprights and light (RAL7035) grey shelves and cladding paint finish. Available in open bay or clad bay versions, height 2.1 m, width 1 m, with a selection of shelf depths and accessories.

Техническая спецификация
pdfDatasheet
pdfDatasheet
pdfInstruction Manual
Высота:
2100мм
Длина:
1000мм
Материал:
Сталь
Нагрузочная емкость:
1200кг
Система:
Modular Shelving
Тип компонента:
Open Starter Bay
Цвет:
Серый
Ширина:
500мм
